Why Gallium Arsenide Outperforms Silicon in Solar Panels

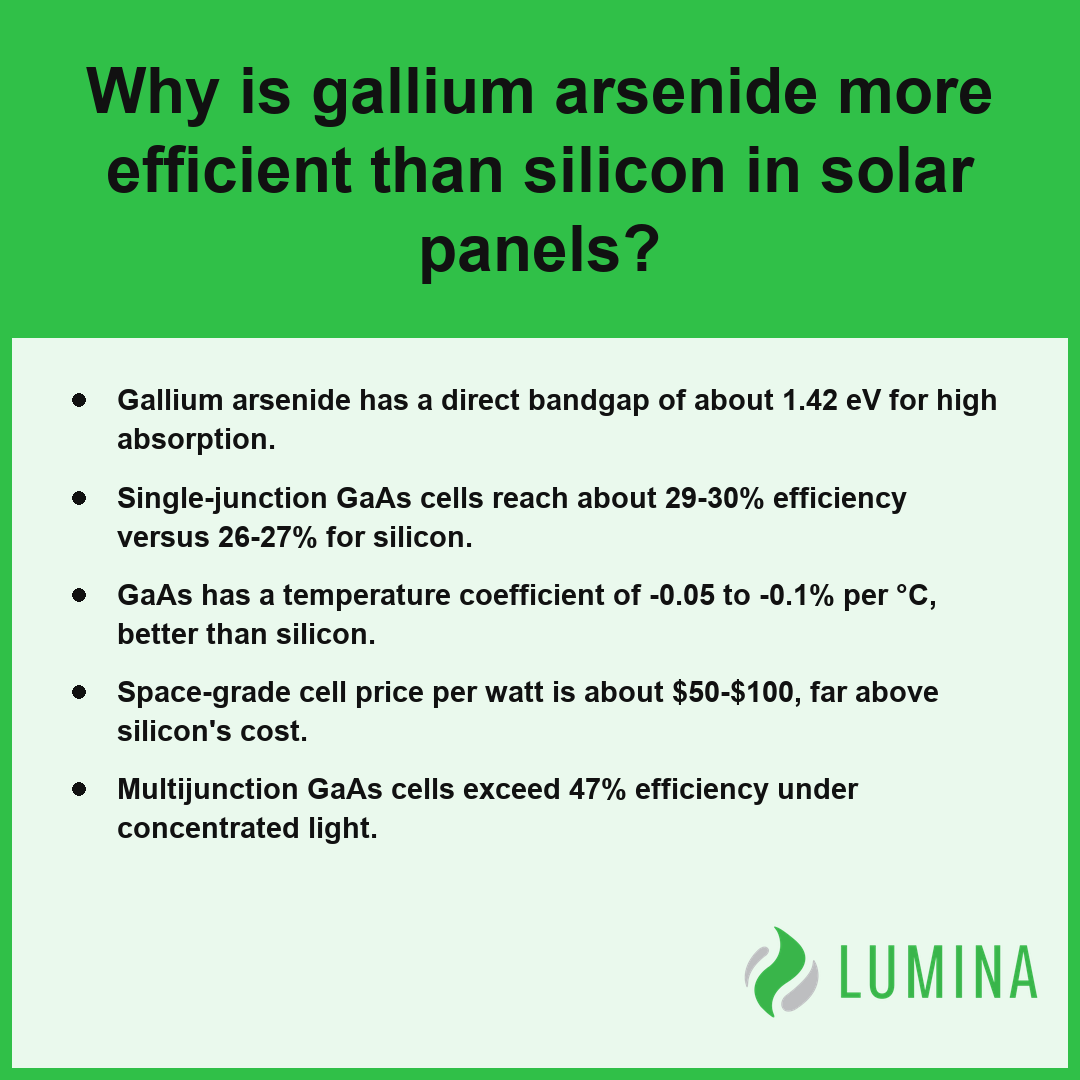

Gallium arsenide outperforms crystalline silicon in solar panels primarily due to its direct bandgap, which enables superior light absorption and electron excitation properties within a much thinner physical structure. According to the National Renewable Energy Laboratory, gallium arsenide cells achieve higher power conversion efficiencies than conventional silicon cells because their direct bandgap structure allows for more efficient absorption of photons. While crystalline silicon, with an indirect bandgap of 1.12 eV, requires a thickness of 100-200 micrometers to effectively capture photons, gallium arsenide requires only 1-2 micrometers to achieve the same result because its direct bandgap of about 1.42 eV at 300 K is near the ideal threshold for solar energy conversion.

This distinct physical advantage translates into several technical benefits that enhance the operational performance of the material. The structural and electronic differences between these two semiconductor types are summarized in the following table:

Feature	Gallium Arsenide	Crystalline Silicon
Bandgap Type	Direct	Indirect
Bandgap Energy (300 K)	1.42 eV	1.12 eV
Typical Thickness	1-2 micrometers	100-200 micrometers
Temperature Coefficient	-0.05 to -0.1% per °C	-0.3 to -0.4% per °C

Furthermore, the inherent robustness of the gallium arsenide lattice allows these cells to maintain stability under harsh environmental conditions, such as high-radiation environments that would otherwise degrade the performance of silicon-based alternatives. When evaluating the potential utility of these panels, assess the specific environmental stressors of your installation site to determine if the increased durability justifies the specialized construction requirements.

Beyond the inherent efficiency and physical advantages, gallium arsenide offers specific operational characteristics that favor high-performance applications:

• Superior radiation hardness makes it highly resistant to performance degradation in space-based environments.
• Higher electron mobility facilitates faster charge carrier transport, reducing internal resistive losses.
• Enhanced thermal conductivity enables better heat dissipation during high-intensity solar radiation exposure.
• Spectral absorption range better aligns with the solar spectrum, minimizing thermalization losses for high-energy photons.

How Efficient Are Gallium Arsenide Solar Cells Compared to the Best Silicon Cells?

Gallium arsenide solar cells reach higher peak efficiencies than the best crystalline silicon cells because their direct bandgap of about 1.42 eV at 300 K is near the theoretical ideal for converting sunlight into electricity. While crystalline silicon relies on an indirect bandgap of 1.12 eV and requires significant thickness to absorb light, gallium arsenide captures the majority of usable photons within a thin layer of only 1-2 micrometers.

Cell Type	Efficiency	Primary Configuration
Standard crystalline silicon	26-27%	Single-junction
Gallium arsenide single-junction	29-30%	Single-junction (thin-film 29.1%)
Gallium arsenide-based multijunction	39%	Three-junction (one sun)
Gallium arsenide-based multijunction	Over 47%	Four-to-six-junction (concentrated)

The ability to layer different materials into a multijunction cell allows gallium arsenide technology to surpass the physical limits of single-junction crystalline silicon. By stacking sub-cells tuned to absorb different portions of the solar spectrum, these devices convert a much wider range of energy into current. While crystalline silicon remains the standard for terrestrial utility arrays, these advanced stack architectures represent the pinnacle of light-to-electricity conversion performance.

The Department of Energy reports that while crystalline silicon dominates the domestic market due to lower costs, gallium arsenide is typically reserved for specialized applications where high efficiency and power-to-weight ratios are prioritized over upfront capital expenditure. Assess whether your specific application prioritizes maximum power density over initial procurement expenditure to determine if a multijunction architecture provides sufficient value for your energy requirements.

Beyond the fundamental efficiency metrics, gallium arsenide technology offers several distinct engineering advantages for specialized applications:

• High radiation hardness makes these cells uniquely suited for powering satellites and space exploration vehicles.
• Superior thermal stability allows the material to maintain performance levels even under extreme temperature fluctuations.
• Exceptional flexibility in thin-film form enables integration into lightweight, curved, or portable substrates.
• Enhanced tolerance to high-intensity sunlight allows for efficient operation in systems utilizing optical concentrators.

Why Are Gallium Arsenide Solar Panels So Expensive per Watt?

Gallium arsenide solar panels are expensive per watt because they require precise, atom-by-atom manufacturing processes on high-cost substrates, leading to prices ranging from $50 to $100 or more per watt.

Epitaxial Growth and MOCVD Equipment Costs

Why Slow Growth at 600-700 °C Raises Cost

The manufacturing process relies on metal-organic chemical vapor deposition (MOCVD) to build thin layers. This requires high-purity precursors and strict environmental controls within the reactor. Because the growth process is inherently slow compared to mass-production silicon casting, you face significant overhead in equipment depreciation and power consumption. Per Sandia National Laboratories, gallium arsenide solar cells necessitate the use of high-cost, single-crystal germanium or gallium arsenide substrates, which are much more expensive to fabricate than the silicon wafers used in standard residential and commercial solar panels.

Does Epitaxial Lift-Off Make Substrate Reuse Possible?

Yes, epitaxial lift-off makes substrate reuse possible by allowing the thin active layer of the cell to be separated from the expensive growth wafer. This process is essential for lowering the weight of the final module and enabling the reuse of the underlying substrate for subsequent production cycles, though the added complexity of the transfer process remains a significant technical and economic hurdle.

Small Production Volumes Versus Silicon Scale

The price discrepancy between gallium arsenide and crystalline silicon is largely driven by the sheer scale of the global supply chain. While silicon modules benefit from massive industrial automation resulting in costs well under $0.30 per watt, gallium arsenide production remains concentrated in boutique or specialty sectors.

Production Factor	Gallium Arsenide	Crystalline Silicon
Material Thickness	1-2 micrometers	100-200 micrometers
Manufacturing Scale	Low (Specialty)	High (Commodity)
Typical Cost	$50–$100+ per watt	< $0.30 per watt

Compare the anticipated operational lifespan and weight savings of these thin-film cells against your specific project requirements to determine if the high initial expenditure offers a justifiable return on investment.

Beyond the core manufacturing constraints, several operational factors limit the cost-competitiveness of gallium arsenide cells compared to silicon:

• High-purity chemical precursor requirements increase operational expenditure due to the volatile and hazardous nature of metal-organic gases.
• Strict cleanroom standards for MOCVD reactors necessitate constant, high-energy atmospheric and thermal regulation.
• Thermal expansion mismatch between the active cell layers and alternative, cheaper receiver substrates complicates the design of flexible or low-cost modules.
• Lower throughput rates prevent the utilization of the continuous production methods, such as Czochralski silicon pulling, that drive commodity solar pricing.

Do Gallium Arsenide Solar Panels Work Better in Hot Weather Than Silicon Panels?

Yes, gallium arsenide solar panels work better in hot weather than crystalline silicon panels because they possess a superior temperature coefficient that minimizes power degradation as ambient heat rises. While silicon modules experience a significant drop in voltage as temperatures climb, the unique physical properties of gallium arsenide ensure that performance remains more stable throughout the heat of the day. Per the American Physical Society, the inherent material properties of III-V semiconductors such as gallium arsenide result in better thermal stability and lower voltage degradation when used in high-concentration solar applications.

Performance Metric	Gallium Arsenide (GaAs)	Crystalline Silicon (c-Si)
Temperature Coefficient (% loss/°C)	-0.05% to -0.1%	-0.3% to -0.4%
Thermal Bandgap (300 K)	1.42 eV (Direct)	1.12 eV (Indirect)
High-Heat Voltage Stability	Superior/Highly Stable	Moderate/Significant Drop
Optimal Operating Environment	High-Concentration/Extreme Heat	Standard Residential/Commercial

• Temperature coefficient of gallium arsenide: roughly -0.05 to -0.1% per °C.
• Temperature coefficient of crystalline silicon: about -0.3 to -0.4% per °C.
• Heat-related power retention: gallium arsenide maintains higher output during peak thermal conditions compared to traditional silicon counterparts.
• Bandgap stability: at 300 K, the direct bandgap of about 1.42 eV allows for efficient energy conversion that is less susceptible to the thermal fluctuations that impact the 1.12 eV indirect bandgap of silicon.

Consider the typical peak ambient temperatures of your installation site when calculating whether the thermal stability of these cells justifies the added investment in specialized high-heat environments.

Beyond the provided thermal metrics, these factors influence the practical implementation of gallium arsenide technology:

• GaAs material density allows for thinner cell construction, significantly reducing the overall weight of solar arrays in aerospace and specialized applications.
• The direct bandgap structure of GaAs enables the absorption of photons within a thinner active layer, which facilitates the creation of flexible and lightweight solar harvesting devices.
• Gallium arsenide exhibits higher radiation hardness compared to silicon, making it significantly more resistant to performance degradation caused by high-energy particle exposure in space environments.

Can You Buy Gallium Arsenide Solar Panels for Your Home, and Where Are They Actually Used?

No, you cannot typically buy gallium arsenide solar panels for your home because their extreme price per watt makes them impractical for residential installations. While crystalline silicon remains the standard for rooftops, gallium arsenide technology is reserved for specialized environments where its unique physical properties provide mission-critical advantages that justify its high expense. Because these cells are grown via metal-organic chemical vapor deposition (MOCVD) at temperatures between 600-700 °C, they are engineered for extreme precision rather than mass-market utility.

Gallium Arsenide Application	Primary Technical Advantage	Operational Efficiency Range
Space-Grade (Triple-Junction)	High radiation hardness and thermal stability	28% – 32%
Concentrator Photovoltaics (CPV)	High-intensity light conversion via optics	47%+
Unmanned Aerial Vehicles (UAVs)	Ultra-low weight-to-power ratio	Application-dependent

• Space Exploration: Space-grade triple-junction cells (28-32% efficiency) power most satellites and probes because they offer superior radiation tolerance compared to crystalline silicon. Per the National Aeronautics and Space Administration, the superior radiation hardness and performance stability of gallium arsenide photovoltaics under extreme temperature fluctuations make them the standard technology for powering satellites and deep-space missions.
• Concentrator Photovoltaics (CPV): These systems use lenses or mirrors to focus light onto small, high-efficiency multijunction cells that achieve over 47% efficiency under concentrated illumination.
• Unmanned Aerial Vehicles (UAVs): Because thin-film versions can weigh only a few grams per square meter, they are used on high-altitude, long-endurance aircraft where weight minimization is essential.
• Specialty Research: Advanced laboratory settings utilize these cells for high-intensity, controlled-environment light conversion where space is limited and output requirements are at the physical maximum.

Before considering alternative high-efficiency technologies for your power needs, evaluate whether your installation site provides the consistent, direct solar tracking required for concentrator photovoltaics to function effectively.

These specialized applications share several inherent engineering challenges that limit their use outside of high-budget sectors:

• Fragility: The crystalline structure of gallium arsenide is significantly more brittle than silicon, requiring complex substrate bonding for physical durability.
• Environmental Toxicity: The manufacturing process involves hazardous materials, specifically arsenic, which necessitates expensive disposal and safety protocols.
• Scalability Constraints: The MOCVD growth method is slow and batch-dependent, preventing the rapid, continuous production needed to lower consumer costs.
• Substrate Costs: The requirement for high-purity, single-crystal gallium arsenide wafers introduces significant raw material overhead that silicon-based manufacturing avoids.
