Micro Inverter: Shade Performance, Cost, Warranty, Lifespan, Power Rating, Efficiency, Types, Safety Compliance, Clipping, Monitoring
Everything you need to know about “micro inverter”: cost, shade performance, lifespan, warranty, efficiency, power rating, safety compliance, types, monitoring, and clipping. Each micro inverter works beside its own panel, so every panel produces usable power independently instead of feeding one central unit. This setup shapes how a system responds to shade, dirt, or a failing panel, since one weak panel does not pull down the output of the others. In the wider field of solar panels, this design is one of two main inverter approaches, alongside string inverters and power optimizers. When you research solar installers near me, you will often see micro inverter systems described in terms of upfront cost, expected lifespan, warranty length, conversion efficiency, and shade performance. This article explains each of those areas so you understand how the technology behaves in practice.

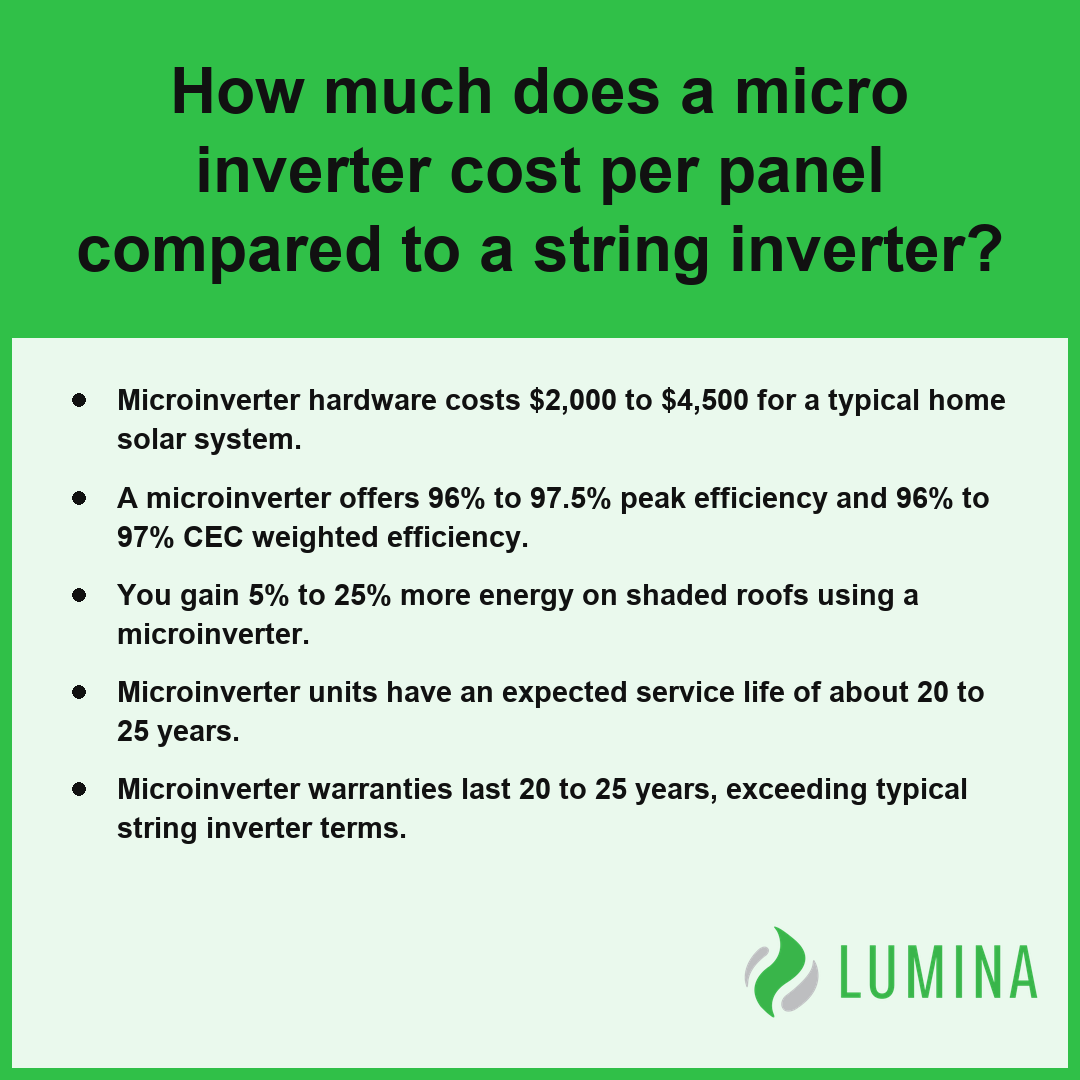

Key Takeaways
- Microinverter hardware costs $2,000 to $4,500 for a typical home solar system.
- A microinverter offers 96% to 97.5% peak efficiency and 96% to 97% CEC weighted efficiency.
- You gain 5% to 25% more energy on shaded roofs using a microinverter.
- Microinverter units have an expected service life of about 20 to 25 years.
- Microinverter warranties last 20 to 25 years, exceeding typical string inverter terms.
Microinverter Cost Per Panel Compared to a String Inverter
The microinverter cost per panel, when compared to a string inverter, represents a higher upfront hardware investment because you are purchasing individual power conversion units for each solar panel rather than one central device. While a string inverter manages an entire array, a microinverter system distributes the power electronics across your roof, which influences the total hardware budget for your installation. Per the National Renewable Energy Laboratory, microinverter systems generally carry a higher per-watt equipment cost compared to traditional string inverter configurations due to the requirement for individual power conversion units at each solar module.
Typical Hardware Cost (6 to 10 kW System)
| System Component | Typical Hardware Cost |
|---|---|
| Individual microinverter unit | $100 to $200 per panel |
| Total system (6 to 10 kW) using microinverters | $2,000 to $4,500 |
| Total system (6 to 10 kW) using string inverter | $1,000 to $2,500 |
When you evaluate these costs, consider that the microinverter approach accounts for roughly $0.25 to $0.50 per watt of your total system capacity. Although the initial price for microinverters is higher, this expense covers the distributed MPPT capabilities and the ability to monitor each solar panel individually via your gateway. By contrast, a string inverter system lacks this granular level of control, which can lead to higher long-term costs if a single panel underperforms or requires troubleshooting later in the system’s life. Compare these hardware costs against your specific roof layout to determine if the added complexity of panel-level electronics offers enough energy harvest benefits to justify the premium over a simpler string inverter architecture.
Beyond the initial hardware investment, consider these operational and design factors that differentiate microinverter systems from string inverters:- Panel-level optimization: Microinverters mitigate energy loss caused by localized shading, debris, or mismatched module performance across the array.
- Safety compliance: The distributed architecture simplifies adherence to rapid shutdown requirements, as high-voltage DC is converted to AC at the roof level.
- Scalability: System capacity can be expanded easily in the future by adding individual microinverters and modules without needing to reconfigure an entire string.
- Maintenance access: Component failures are easier to diagnose through remote monitoring, though physical repair requires roof access for each affected unit.
What Is the CEC Weighted Efficiency of a Microinverter?
The CEC weighted efficiency of a microinverter is the metric representing how well the unit converts direct current to alternating current across varying light conditions, typically measured between 96% and 97%.
Typical Microinverter Efficiency Comparison
How Peak Efficiency Differs From CEC Weighted Efficiency
While peak efficiency measures the conversion performance under ideal, full-sun conditions—reaching 96% to 97.5%—the CEC weighted efficiency provides a more realistic snapshot of daily operation. Per the California Energy Commission, this efficiency rating is determined by a weighted formula that assigns specific importance to inverter performance at 10%, 20%, 30%, 50%, 75%, and 100% of the unit’s rated capacity to account for non-linear power production throughout a typical day. Because your solar panel rarely operates at its absolute peak throughout the day due to changing sun angles and temperature shifts, this weighted value accounts for performance at multiple power levels. Think of peak efficiency as the top speed of a vehicle, while the CEC weighted efficiency acts as the fuel economy rating during mixed driving.
What Efficiency Looks Like Across Common Microinverter Models
Modern units balance conversion losses against the heat generated during the process. The following table illustrates the typical performance expectations for current technology:
| Metric Type | Efficiency Range |
|---|---|
| Peak Efficiency | 96% to 97.5% |
| CEC Weighted Efficiency | 96% to 97% |
Why Clipping and DC to AC Ratio Affect the Numbers
Your actual energy yield is influenced by the DC to AC ratio of your system. If your solar panel output significantly exceeds the rated capacity of the microinverter, you will experience clipping. While this limits the power sent to the grid during the peak of the day, a well-balanced ratio ensures your system remains within the efficient operational window for more hours during the morning and evening.
Does Efficiency Change on Hot Days?
Yes, the efficiency of a microinverter can fluctuate as temperatures rise on your roof. High ambient heat increases electrical resistance within the internal components, which may lead to minor performance drops compared to cooler days, though robust thermal management keeps these losses within a narrow margin.
Compare the data sheets of your preferred units to see how the inverter’s maximum DC input voltage aligns with the peak current of your selected solar panel.
Several external factors influence these efficiency metrics during real-world operation:- Operating Temperature: High ambient heat increases internal resistance within electrical components, which typically lowers conversion efficiency.
- Voltage Mismatch: Variations between the solar panel’s output and the microinverter’s optimal operating window can lead to minor energy losses.
- Firmware Optimization: Modern microinverters utilize sophisticated Maximum Power Point Tracking (MPPT) algorithms that continuously adjust to changing light to maximize total energy harvest.
- Component Aging: Internal capacitor degradation over the lifespan of the unit can lead to a gradual reduction in conversion performance.
How Much More Energy Does a Microinverter Produce on a Shaded Roof?
A microinverter produces significantly more energy on a shaded roof by isolating the impact of obstructions, allowing your solar panel system to avoid the “bottleneck effect” common in other designs. Because each unit performs independent maximum power point tracking (MPPT), a branch or chimney shading a single solar panel only limits that specific module’s output, rather than dragging down the entire array. According to the U.S. Department of Energy, module-level power electronics allow individual panels to operate independently so that localized shading or debris only affects the specific panel impacted rather than reducing the efficiency of the entire array. On roofs with complex obstructions or multiple orientations, you can expect an annual energy harvest gain of roughly 5% to 25% compared to setups that lack panel-level control. In contrast, on a clean, unshaded, single-plane roof, these gains are minimal, typically ranging from about 0% to 3%.
| Roof Configuration Type | Primary Performance Impact | Estimated Annual Energy Harvest Gain |
|---|---|---|
| Complex Roof (Multiple Orientations/Obstructions) | Mitigates bottleneck effect via module-level MPPT | 5% – 25% |
| Clean, Unshaded Single-Plane Roof | Minimal variance; limited impact from individual tracking | 0% – 3% |
Estimated Annual Energy Harvest Gain
The efficiency of your system under variable conditions depends on how effectively the hardware manages these localized drops in sunlight. Consider the following performance characteristics when evaluating potential energy yield improvements:
- Individual MPPT allows panels in direct sunlight to maintain full output despite adjacent shaded units.
- Panel-level monitoring through a gateway provides granular data to identify specific modules underperforming due to recurring shade.
- DC wiring remains limited to 48 to 60 V per input, ensuring safety and compliance with rapid shutdown requirements during maintenance.
- Reduced system sensitivity to environmental debris, such as leaves or bird droppings, ensures higher reliability than series-connected architectures.
Review the specific shading profile of your roof layout in your design proposal to verify that the projected production gain justifies the equipment choice for your site.
Beyond the harvest gains, consider these additional operational advantages of microinverter technology:- Enhanced system safety through rapid shutdown capabilities compliant with National Electrical Code requirements.
- Real-time, panel-level monitoring that allows for precise identification of underperforming or faulty modules.
- Simplified system expansion, as additional panels can be integrated into the array without replacing existing string inverters.
- Increased system longevity due to the lack of a single point of failure inherent in centralized inverter designs.
How Long Do Microinverters Last on a Hot Roof?
Microinverters generally last about 20 to 25 years on a hot roof, though their electronic components face significant thermal stress in high-temperature environments. Because these devices are installed directly underneath the solar panel, they are subjected to consistent heat buildup and fluctuations throughout the day. While the hardware is designed to withstand these conditions, the internal capacitors and semiconductors can age more rapidly if the roof experiences prolonged periods of extreme heat, which eventually affects the unit’s ability to maintain optimal performance. The Department of Energy reports that efficiency losses in power conversion equipment are exacerbated by prolonged exposure to heat, making robust heat dissipation designs essential for maintaining expected service lifespans.
| Thermal Stress Factor | Primary Mechanism of Failure | Impact on Microinverter Longevity | Recommended Mitigation Strategy |
|---|---|---|---|
| Thermal Cycling | Mechanical strain on solder joints | Leads to internal connection fractures | Ensure secure, industry-standard rack mounting |
| Ambient Roof Heat | Degradation of semiconductor transistors | Reduces overall power conversion efficiency | Utilize light-colored or reflective roofing materials |
| Airflow Restrictions | Heat trapping due to proximity | Accelerates hardware thermal runaway | Maintain consistent standoff gap for ventilation |
| Electrolytic Capacitor Stress | Internal electrolyte evaporation | Causes premature loss of power output | Select high-temperature-rated industrial components |
When evaluating the longevity of your hardware in relation to environmental factors, consider these common stressors that influence the service life of a microinverter:
- Thermal Cycling: Constant expansion and contraction caused by daily temperature swings can stress internal solder joints.
- Ambient Roof Temperature: Elevated temperatures above the roof surface reduce the lifespan of heat-sensitive electronic transistors.
- Airflow Restrictions: Improper mounting or panels placed too flush against the roof can trap heat, preventing the microinverter from cooling properly.
- Component Degradation: High heat accelerates the drying out of electrolytic capacitors, a common point of failure in power electronics.
Compare the anticipated thermal conditions of your specific roof orientation against the operating temperature range listed in the manufacturer’s technical documentation to determine if additional ventilation is required.
To further protect your equipment from heat-related degradation, consider these additional installation and maintenance practices:- Apply a thermal interface material (TIM) between the microinverter housing and the mounting bracket to improve heat conductivity.
- Perform annual inspections to clear away debris, such as leaves or nests, that might be obstructing the cooling fins.
- Install microinverters in the shaded zones of the array where possible to minimize direct solar radiation absorption.
- Monitor inverter-level telemetry for early detection of temperature-related voltage fluctuations or signal interference.
What a 25-Year Microinverter Warranty Actually Covers
A 25-year microinverter warranty covers the replacement or repair of the hardware unit itself if it experiences a manufacturing defect or premature failure during the coverage period. Because each microinverter operates as a distinct power conversion point behind a solar panel, the warranty is designed to account for the physical labor and logistical requirements of performing service on a rooftop environment. Per the Solar Energy Industries Association, these warranties generally provide for the repair or replacement of defective equipment but do not cover degradation in power output performance in the same way that power output guarantees protect solar modules.
| Warranty Coverage Component | Primary Functional Scope | Operational Limitation |
|---|---|---|
| Internal Hardware Integrity | Covers MPPT circuit failure, communication loss, and unit-wide power cessation. | Does not account for panel-level power output degradation over time. |
| Manufacturing & Materials | Remediation for factory defects and sub-standard component production. | Performance is measured against static specs, not relative energy loss. |
| System Connectivity | Remote firmware updates for grid compliance and monitoring integration. | Requires functional gateway and network connectivity to implement. |
| Replacement Logistics | Provision of replacement hardware units for failed solar electronics. | Often excludes rooftop labor/service fees unless specified by the provider. |
| Environmental Resilience | Operational guarantees within standard residential rooftop temperature ranges. | Damage from extreme force majeure or improper installation is excluded. |
- Defect Coverage: Protection against internal component failure, including issues with the maximum power point tracking (MPPT) circuitry, communication failures with the gateway, or total power output cessation.
- Material and Workmanship: Remediation for hardware that fails to meet published performance standards due to poor manufacturing quality or faulty materials.
- Firmware Support: Ongoing access to remote software updates that maintain grid compliance, safety protocols, and effective integration with panel-level monitoring tools.
- Replacement Logistics: Provision of a functional replacement unit, though you should verify whether the manufacturer covers the associated labor costs for the technician to climb the roof and perform the physical swap.
- Environmental Durability: Assurance that the unit remains operational under the temperature ranges typically found on a residential roof, protecting you against failure caused by normal thermal cycling.
Review the manufacturer’s specific terms to determine if the policy includes an allowance for the labor required to remove and replace an underperforming unit, as coverage for shipping and installation services often differs from the protection offered for the device itself.
Beyond the primary coverage terms, keep these practical considerations in mind when reviewing your warranty documentation:- Confirm if the manufacturer offers an “installer compensation” program to offset the costs of physical roof access and unit re-installation.
- Verify that the warranty remains valid if the original installation company ceases operations or is no longer an authorized service partner.
- Check for specific requirements regarding the submission of digital diagnostic reports to initiate a hardware claim.
- Determine if the warranty covers the shipping costs for sending defective units back to the manufacturer for forensic analysis.
Frequently Asked Questions
What VA rating should a micro inverter have for a 400 W to 500 W solar panel?
A microinverter for a 400 W to 500 W solar panel should typically have an output rating of 300 to 400+ VA per input. Modern dual-unit systems may reach a total output of 800 to 1,000 VA to effectively manage the higher power produced by these contemporary solar panels.
What is the difference between single-panel, dual-input, and quad-input micro inverters?
Microinverter configurations differ by the number of panels they serve: single-panel units manage one module, dual-panel units manage two inputs, and quad-input units serve four panels simultaneously. All versions perform independent maximum power point tracking (MPPT) to ensure that issues like shading on one panel do not affect the others.
Does a micro inverter clip power when the panel is rated higher than the inverter?
Yes, a microinverter will experience clipping if the solar panel output exceeds the device’s rated capacity, though this design choice is common to balance costs. While you might lose some peak power during optimal conditions, the microinverter remains efficient, typically maintaining a CEC weighted efficiency of 96% to 97%.
Can I see each panel’s output with micro inverter monitoring?
Yes, you can see each panel’s output through panel-level monitoring, which provides data for every module via a gateway or cloud app. This visibility allows you to quickly identify underperforming or failing components by observing specific power fluctuations across your entire solar array in real time.
Do micro inverters work during a power outage and meet rapid shutdown requirements?
No, a standard microinverter will not work during a power outage because it shuts down when the grid drops, though this feature ensures you meet rapid shutdown requirements. Unless you utilize an AC-coupled battery system, your solar energy production will pause until grid power is restored to your microinverter.
