Why Solar Needs an Inverter to Turn Panel DC Into AC Power

You need an inverter because your solar panels produce direct current that your household appliances and the grid cannot use, so the device must transform it into usable AC power. Per the National Renewable Energy Laboratory, photovoltaic systems require an inverter to perform the necessary power conversion from direct current to alternating current to ensure compatibility with standard residential electrical panels and utility-connected loads.

Inverter Technology	Conversion Location	System Dependency	Ideal Application
String Inverter	Centralized (Grid-level)	Series-linked (Lowest-performing panel dictates output)	Uniform, unshaded roof planes
Microinverter	Individual Panel-level	Independent operation	Complex geometries or partial shading
Power Optimizer	Hybrid (DC at panel / AC at center)	Optimized output per module	Flexible layouts requiring central management

How a String Inverter Handles Conversion

A string inverter provides the central conversion of DC energy from your solar panels into usable AC power for your home. By connecting multiple panels in a single series circuit, this technology funnels the DC input into one device that manages the synchronization of grid frequency and voltage. This setup effectively centralizes the transformation of electricity, requiring that all panels in the series operate at the output of the lowest-performing module.

What Makes a Microinverter Different?

A microinverter functions by performing the conversion of DC to AC power at the individual panel level rather than at a central location. Because each panel operates independently, the system avoids the limitations of series-based cabling.

• Centralized string inverters: Higher reliability for simple roof orientations.
• Panel-level microinverters: Improved harvest during partial shading or complex roof geometries.
• Power optimizers: A hybrid approach that performs DC optimization at the panel while maintaining central conversion.

Where Each Inverter Type Fits Best on Your Roof

You should select a string inverter if your roof features a single, unshaded orientation, as this minimizes the number of points of failure. Conversely, if your roof surface experiences varied shade throughout the day or consists of multiple segments with different angles, microinverters ensure that one shaded panel does not drag down the performance of the entire array.

Typical Conversion Efficiency and DC-to-AC Ratio

The conversion process is subject to thermodynamic realities, with typical inverter conversion efficiency for string inverters and microinverters ranging between 96 to 98%. Because the DC input from your panels is often higher than the maximum output of your hardware, a typical DC-to-AC ratio for residential solar systems is 1.1 to 1.4. This configuration accounts for the system derate, ensuring that your AC power remains stable even when sunlight intensity peaks.

Compare the anticipated shading patterns on your roof against your total array capacity to determine which conversion architecture best maximizes your system’s lifetime output.

Microinverters offer distinct functional advantages for residential solar installations by operating at the individual module level:

• Convert DC power to AC directly at the panel, eliminating high-voltage DC wiring on the roof.
• Monitor energy production for each solar module individually to simplify system diagnostics.
• Enable the expansion of solar arrays over time without requiring identical panel orientation or tilt.
• Maintain higher system energy yield by preventing a single shaded or soiled panel from impacting the entire string.

Why Your Solar System’s AC Power Output Is Lower Than Your Panel Rating

The AC power output of your solar system is lower than your panel rating because the conversion process involves inherent physical losses, and the system is intentionally designed with a specific DC-to-AC ratio to maximize performance. While your panels produce DC energy, the transition to usable AC power involves efficiency limits in the inverter, as well as line-side derating caused by the components themselves. Because solar panels rarely operate at their absolute peak laboratory rating due to heat, angle, and environmental factors, a mismatch between the DC capacity and the inverter’s maximum output is standard practice in residential designs.

System Efficiency Parameter	Low Performance Estimate	High Performance Estimate	Operational Impact
DC-to-AC Array Ratio	1.1	1.4	Optimizes inverter utilization throughout daylight hours
System Derate Multiplier	0.77	0.86	Accounts for wiring resistance, soiling, and voltage drop
Inverter Conversion Efficiency	96%	98%	Energy lost as heat during the conversion process

• Inverter Conversion Efficiency: Modern string inverters and microinverters operate at 96% to 98% efficiency, meaning a small percentage of DC input is lost as heat during the conversion to AC power.
• DC-to-AC Ratio: Systems are commonly built with a DC-to-AC ratio of 1.1 to 1.4, where the DC panel array is larger than the inverter’s rated output capacity to ensure the system reaches its maximum conversion potential earlier and later in the day.
• System Derate Factors: Total system performance modeling often applies a DC-to-AC derate of 0.77 to 0.86, which accounts for wiring resistance, dust on panels, and voltage drops across the circuit. According to the United States Department of Energy, system performance is typically reduced by site-specific factors such as shading, high-resistance wiring, and dust accumulation, all of which lower the total DC energy available for the inverter to process.
• Power Factor: Since grid-tied inverters typically maintain a power factor between 0.95 and 1.0, the real power (kW) delivered to your home is slightly less than the apparent power (kVA) capacity of the equipment.

Review your system’s performance monitoring data to compare your actual daily peak wattage against the expected capacity after these efficiency derates are applied.

Beyond the conversion and ratio factors, these external variables also influence your actual solar production:

• Temperature Coefficient: Solar panel voltage and current output decrease as the cell temperature rises above the standard testing condition of 25°C.
• Incidence Angle: Energy capture varies based on the sun’s position relative to the panel surface, affecting the amount of light absorbed throughout the day.
• Environmental Soiling: The accumulation of dust, pollen, or snow on the glass surface physically blocks sunlight from reaching the photovoltaic cells.
• Voltage Drop: Long cable runs between the array and the inverter consume a portion of the energy as heat due to internal electrical resistance.

kW vs. kWh: Sizing AC Power From Solar for Your Home’s Usage

kW vs. kWh: Sizing AC power from solar for your home’s usage involves distinguishing between the instantaneous rate of electricity flow and the total amount of energy consumed over time. Real power (kW) represents the rate at which your inverter delivers AC power to your circuits at any given moment. In contrast, energy (kWh) is the cumulative total of that AC power used over a period, such as the average US home’s consumption of about 10,500 kWh per year, or about 29 kWh per day. Per the U.S. Department of Energy, residential electricity consumption in the United States averages approximately 899 kilowatt-hours per month, which serves as a helpful baseline for calculating your necessary solar array size. While your solar system is sized by its peak output in kW, your goal is to match that capacity to your daily and seasonal energy needs to offset your utility demand.

Metric Category	Unit	Contextual Baseline	Application for Sizing
Instantaneous Power	kW	Inverter Peak Output	Determines ability to handle concurrent household load spikes
Cumulative Energy	kWh	29 kWh / Day	Determines solar array size required to offset total utility demand
Service Capacity	kW	7.7 kW (240V/32A)	Establishes the upper limit for safe home circuit delivery

To balance these metrics, consider the relationship between your system’s AC capacity and your daily consumption patterns:

• Peak AC Power (kW): The maximum instantaneous rate your inverter can provide, often constrained by your chosen DC-to-AC ratio of 1.1 to 1.4.
• Energy Production (kWh): The total volume of AC power generated over a day or month, which depends on sunlight availability and your specific system orientation.
• Load Capacity: The limit of your split-phase service, such as a 240 V, 32 A circuit delivering about 7.7 kW, which dictates the maximum load your home can draw simultaneously.
• Grid Interaction: The balance between your generated real power (kW) and apparent power (kVA), managed by your inverter’s power factor, typically ranging from 0.95 to 1.0.

Compare your utility bill’s historical monthly kWh total against your projected solar production estimates to ensure your kW inverter rating is sufficient to cover your peak usage hours.

Follow these practical steps to determine your home’s specific energy requirements:

• Audit your utility bill for the past 12 months to account for seasonal heating and cooling fluctuations.
• Identify high-draw appliances that contribute to peak kW spikes, such as electric vehicle chargers or heat pumps.
• Calculate your solar offset ratio by dividing your projected annual solar production by your current annual grid consumption.
• Factor in “system degradation” by sizing your array 5–10% larger to ensure it meets your energy needs as the panels age over time.

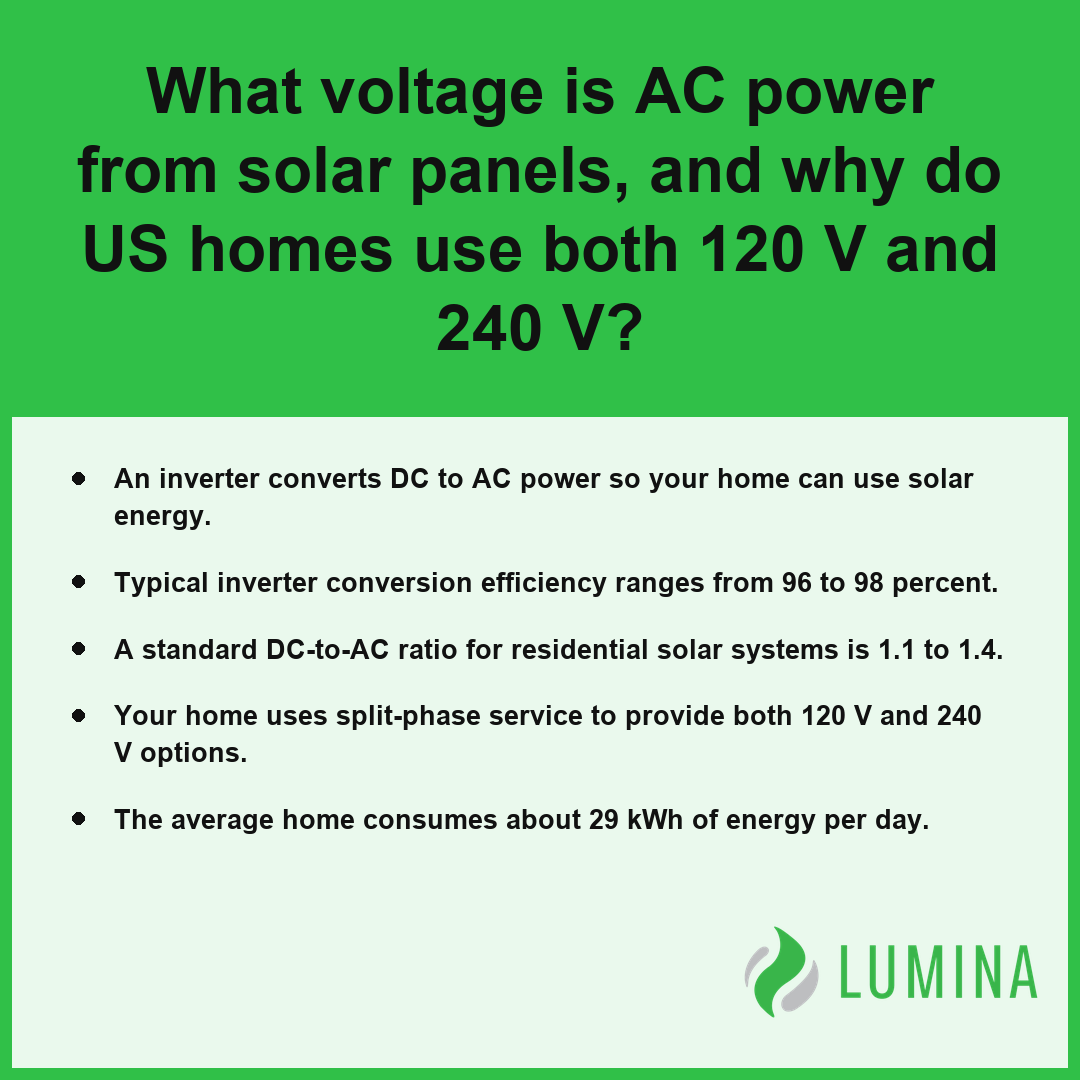

What Voltage Is AC Power From Solar Panels, and Why Do Homes Use Both 120 V and 240 V?

The voltage of AC power from solar panels is synchronized by your inverter to match the nominal 120/240 V split-phase service found in most residential settings. Per the National Institute of Standards and Technology, North American residential electrical systems utilize this split-phase configuration to provide 120 V for standard lighting and small appliances alongside 240 V for heavy-duty loads like central air conditioning or electric dryers. This configuration utilizes two 120 V legs that are 180 degrees apart, which allows your electrical panel to provide 120 V for standard household outlets and 240 V for high-demand appliances. The inverter ensures that the output frequency remains at 60 Hz, meaning 60 full cycles per second, to safely integrate with the grid and your internal wiring. While your system maintains this standard, the actual voltage may fluctuate within a specific service range to ensure stability, as detailed in the following table.

Voltage Level	Operational Context
120 V	Standard residential circuit, RMS value for typical outlets
114 V to 126 V	Allowed service range (±5%) per residential standards
170 V	Peak voltage of the 120 V RMS sine wave
240 V	Combined output for heavy-duty appliances like EV chargers

Homes require both voltages because 120 V is sufficient for low-draw lighting and electronics, whereas 240 V is essential for delivering higher real power (kW) to equipment like central air units or ovens without requiring excessively large, inefficient wiring. A 240 V, 32 A circuit, for instance, provides about 7.7 kW at unity power factor, which is necessary for the high energy demands of large heating or charging elements.

Review your primary electrical panel label to confirm your main breaker is rated for the 240 V input expected by your specific inverter model.

Proper integration of your solar inverter requires adherence to several safety and operational protocols:

• Ensure your inverter is UL 1741 certified to guarantee compliance with grid interconnection standards.
• Verify that your home’s main service panel has sufficient busbar capacity to handle the incoming solar feed alongside existing loads.
• Confirm that the inverter’s anti-islanding protection is active to prevent power export during utility grid outages.
• Schedule periodic inspections of electrical terminations to prevent voltage drops caused by oxidation or loose connections.

What Happens to Your Solar AC Power During a Blackout, and Can You Get Backup Power?

No, your solar AC power does not continue to flow into your home during a blackout unless you have installed specific backup equipment designed to isolate your system from the grid. Per the Department of Energy, standard grid-tied solar inverters automatically shut down during power outages, meaning homeowners cannot access their generated electricity unless they install a specialized battery backup or an inverter with an isolated emergency power port. Because solar systems are grid-tied, they are programmed with mandatory anti-islanding features that detect the loss of utility voltage and shut down the inverter instantly. This safety measure ensures that your equipment does not push AC power onto downed lines, protecting utility repair crews from unexpected electrical hazards.

Backup Architecture Type	Operational Mechanism	Grid Connectivity Status	Efficiency Metric
Standard Grid-Tied	Anti-islanding automatic shutdown	Disconnected during outage	N/A (No storage)
Hybrid Inverter	Integrated solar-to-battery management	Isolated during outage	System Dependent
AC-Coupled System	Bi-directional DC/AC conversion	Isolated during outage	85% – 90% Round-trip
Grid-Forming Inverter	Independent voltage/frequency synthesis	Isolated during outage	High (Dedicated source)

If you desire reliable backup capacity during grid outages, you must integrate storage solutions or specialized hardware that allows for off-grid operation. The transition to backup mode depends on the type of system architecture you choose:

• Hybrid Inverters: These units manage both solar input and battery storage, allowing you to draw power from a battery bank while the home remains disconnected from the grid.
• AC-Coupled Systems: These add batteries to an existing solar installation, converting DC to AC and back to DC for storage, resulting in a round-trip efficiency of approximately 85 to 90%.
• Grid-Forming Inverters: These advanced inverters establish their own voltage and frequency reference during a blackout, which is necessary to keep your AC power active when the utility signal is absent.

Evaluate your household’s peak load requirements to determine if your inverter and battery configuration can sustain the necessary real power (kW) for your essential appliances during an extended outage.

To ensure your solar system provides power during a grid failure, consider these additional technical requirements:

• Confirm that your existing solar inverter is compatible with a firmware update for “grid-forming” capabilities.
• Install a manual or automatic transfer switch to physically disconnect your home’s circuits from the utility grid.
• Verify that your local building codes permit the installation of a battery backup system alongside your existing array.
• Ensure your critical load panel is wired specifically to support essential appliances during an outage.
