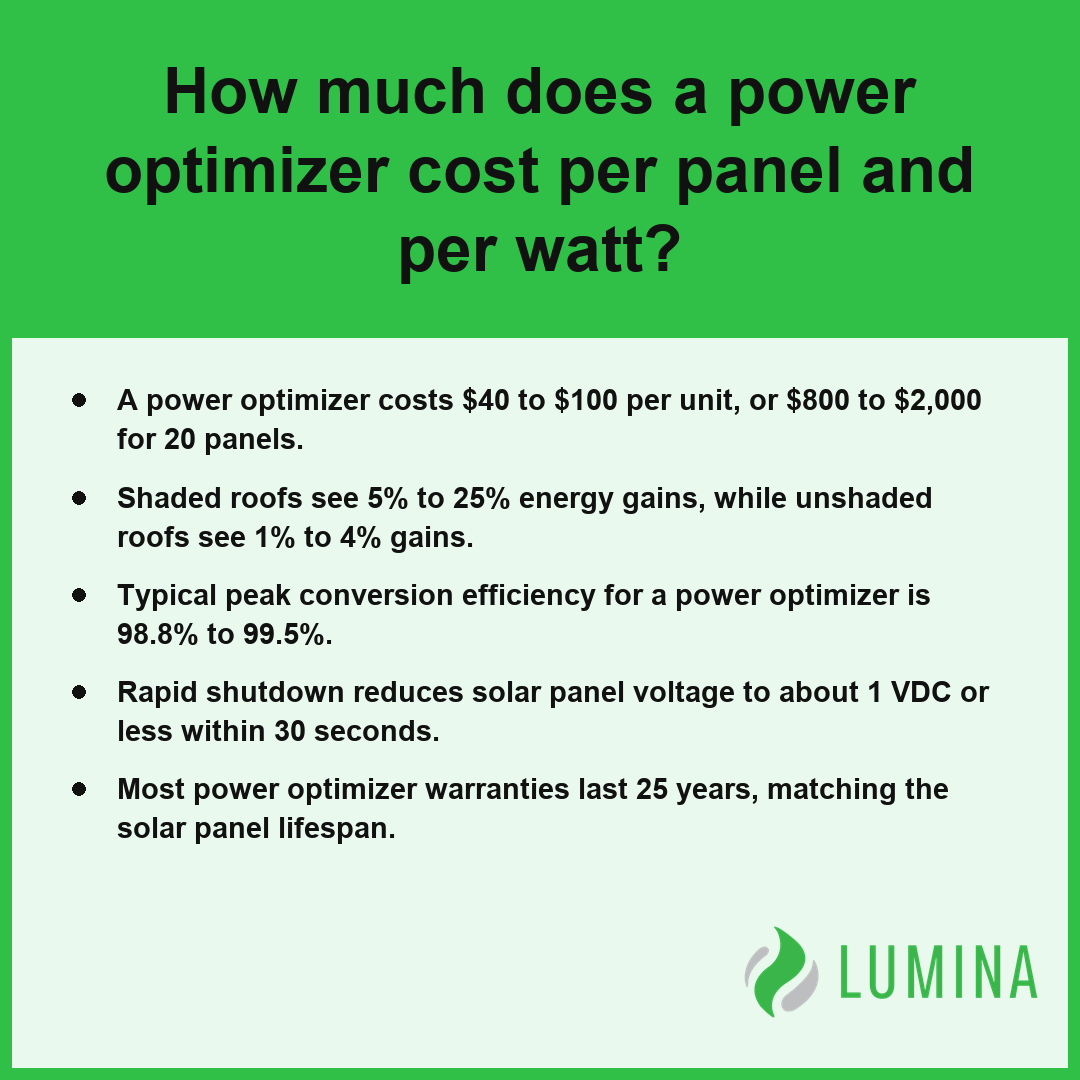

What Does a Power Optimizer Cost Per Panel and Per Watt?

The costs of a power optimizer range from $40 to $100 per unit, which equates to roughly $0.10 to $0.25 per watt of solar panel capacity depending on the specific equipment selection. Per the Department of Energy, adding power optimizers to a solar energy system generally increases the per-panel cost by approximately $40 to $70, depending on the manufacturer and the specific performance features integrated into the unit. When you invest in a standard 20-panel system, these hardware costs add between $800 and $2,000 to your total project investment before labor is calculated. Beyond the initial hardware price, you must consider that adding these devices increases the total system premium by approximately 3% to 8% compared to a configuration using only a string inverter.

Cost Metric	Cost Per Unit	Estimated Impact (20-Panel System)
Low-end Hardware Estimate	$40	$800
DOE Average Estimate	$70	$1,400
High-end Hardware Estimate	$100	$2,000
Total System Premium Increase	N/A	3% to 8%

When calculating your total project budget, keep in mind that these costs vary based on the following hardware factors:

• Power capacity requirements: Higher-rated panels (700 W or more) may require more robust models than basic 300 W to 600 W units.
• Smart modules: Purchasing a factory-integrated smart module often bundles the optimizer cost into the panel price rather than showing it as a separate line item.
• Service accessibility: While the hardware cost is static, factor in potential future expenses related to roof access should a unit require a service call during its 25-year lifespan.

Compare the equipment price against your specific array size to determine if the expected efficiency gains justify the added upfront expenditure for your particular roof layout.

Several additional factors can influence the final pricing and installation complexity of your solar optimizer setup:

• Monitoring capabilities: Units offering module-level data tracking and granular performance analytics typically command a higher price point than basic power regulation models.
• Warranty duration: Premium hardware often includes extended manufacturer warranties of 25 years, whereas entry-level options may be capped at 12 to 15 years.
• Installation labor: Integrating optimizers requires additional mounting time and wiring connections under each panel, which increases total technician man-hours compared to standard string inverter configurations.
• Manufacturer compatibility: Proprietary systems that require brand-specific inverters may limit your ability to shop for lower-cost alternatives during the project planning phase.

How Much More Energy Does a Power Optimizer Produce on Shaded Roofs Versus Unshaded Roofs?

When you install a power optimizer on a shaded roof, you can expect an energy gain of 5% to 25% compared to the 1% to 4% gain typically seen on an unshaded, single-plane roof when paired with a string inverter.

Roof Configuration	Primary Performance Driver	Expected Annual Energy Gain	Main Utility
Shaded or Mixed-Orientation	Module-Level MPPT	5% to 25%	Mitigating string-level current drops
Unshaded Single-Plane	System Monitoring & Safety	1% to 4%	Rapid shutdown and granular data

Energy Gain on Shaded or Mixed-Orientation Roofs

Energy gains on shaded or mixed-orientation roofs range from 5% to 25% when you install a power optimizer on each solar panel. Because the device performs maximum power point tracking (MPPT) at the module level, a shaded panel cannot pull down the current of the entire string, allowing unshaded panels to continue producing at their full capability.

Does an Unshaded Roof Still Benefit From a Power Optimizer?

Yes, an unshaded roof still benefits from a power optimizer, though the energy gain is significantly lower, typically falling between 1% and 4%. While you do not face the same shading loss issues as complex roofs, these devices still provide specific advantages that offer value regardless of your roof geometry:

• Panel-level monitoring: You can track the exact performance and voltage of each individual solar panel through an app.
• Rapid shutdown: The system reduces panel voltage to about 1 VDC or less within 30 seconds, improving safety for maintenance and emergency personnel.
• Flexible design: You can create strings of different lengths or mix orientations across various roof planes.

Factors That Change Your Real-World Gain

Why Single-Plane Roofs See Smaller Gains

On a single-plane roof without trees, chimneys, or vents casting shadows, there is minimal differential in sunlight exposure between panels. Since all units receive a consistent solar irradiance profile, the performance gains from individual maximum power point tracking (MPPT) are limited to small variations in manufacturing tolerances or minor accumulation of dirt. According to Sandia National Laboratories, while optimizers offer negligible efficiency improvements for perfectly clear and unshaded arrays, they provide significant energy harvest gains for residential systems impacted by transient or permanent shading from obstacles like trees or chimneys. Consequently, the primary justification for adding an optimizer to such a site shifts from maximizing raw energy harvest to the secondary benefits of safety compliance and granular monitoring data.

Analyze your site’s specific potential for shade during the winter months when the sun sits lower in the sky to determine if the gain justifies the investment.

Beyond energy production, power optimizers provide several practical operational advantages for your solar installation:

• Enhanced safety through automated rapid shutdown features that de-energize high-voltage DC lines during emergencies.
• Improved long-term system health by providing granular diagnostic data for identifying faulty panels or debris-covered modules.
• Greater design flexibility, allowing for the installation of panels across multiple roof facets or varying tilt angles without system-wide losses.
• Simplified troubleshooting, as the monitoring software pinpoints the exact location of maintenance issues, reducing the time required for on-site repairs.

What Is the Efficiency of a Power Optimizer, and Does It Lose Power When Stepping DC Voltage?

The efficiency of a power optimizer is remarkably high, typically ranging from 98.8% to 99.5% at peak performance, meaning the device loses very little energy while performing its DC-to-DC conversion duties. According to the National Renewable Energy Laboratory, power optimizers typically operate with a maximum conversion efficiency ranging from 97.5% to 99.5% when converting and conditioning DC output from solar modules. Because a power optimizer acts as a DC-to-DC converter, it does consume a small amount of electricity to manage maximum power point tracking (MPPT) and stabilize the voltage of the string. However, this conversion process is highly optimized, with weighted efficiency ratings commonly reaching 98.6% to 99%. While every electronic step-down or regulation process incurs a marginal loss, these losses are negligible compared to the energy recovered from preventing underperforming panels from dragging down the entire string.

Operational Metric	Standard Specification Range	Functional Context
Peak Conversion Efficiency	97.5% – 99.5%	DC-to-DC conversion performance
Weighted Efficiency	98.6% – 99.0%	Real-world energy conversion average
Output Voltage Regulation	380 – 400 VDC	Stable string voltage maintenance
Thermal Operating Range	-40°C to 85°C	Environmental efficiency resilience
Typical Input Capacity	300W+	Module power handling capability

To understand the performance characteristics of these devices, consider the following technical operational parameters:

• Conversion Efficiency: Peak rates reach 98.8% to 99.5%, with high weighted averages.
• Voltage Regulation: Units maintain a fixed string voltage (typically 380-400 VDC) regardless of individual panel input.
• Operational Temperature: Designed to maintain these efficiency levels across a range of -40 to 85 °C (-40 to 185 °F).
• Input Capacity: Standard units handle 300-600 W, with newer models supporting 700 W or more to match high-output solar panel technology.

Examine the technical data sheet of your specific model to verify its weighted efficiency rating rather than just its peak rating to better estimate your long-term energy yield.

These factors influence how these efficiency ratings translate into real-world performance:

• Panel-Level Granularity: Individual optimization eliminates the “Christmas light effect,” where a single shaded or soiled panel limits the output of the entire array.
• String Length Flexibility: The ability to stabilize voltage allows for unequal string lengths and multi-directional roof layouts without significant power degradation.
• Monitoring Resolution: Integrated electronics provide module-level data, enabling precise maintenance alerts that help maintain the rated conversion efficiencies over time.
• Voltage Clamping: Safety features automatically reduce string voltage to touch-safe levels during grid outages or emergency shutdowns, distinct from standard conversion operations.

Power Optimizer Inverter Compatibility: Which Inverters Work?

Power optimizer inverter compatibility is highly restricted because these devices are designed to communicate specifically with a central string inverter from the same manufacturer or system family. Because a power optimizer functions as a DC-to-DC converter that holds the string voltage at a fixed level—typically between 380 VDC and 400 VDC—the string inverter must be programmed to interpret these signals and manage the incoming current correctly. Using an incompatible inverter will prevent the system from synchronizing, as the communication protocols required for maximum power point tracking (MPPT) and safety functions like rapid shutdown are proprietary. Per the Institute of Electrical and Electronics Engineers, solar energy systems using module-level power electronics must meet National Electrical Code rapid shutdown standards, which requires functional alignment between optimizer and inverter control signaling.

Operational Constraint	Technical Requirement	System Dependency
DC String Voltage Regulation	380 VDC to 400 VDC Fixed Window	Inverter firmware synchronization
Rapid Shutdown Protocol	IEEE/NEC Compliance Alignment	Proprietary signaling handshake
Data Monitoring Integration	Panel-Level Digital Reporting	Manufacturer-specific bus protocol
Hardware Compatibility	Factory-Integrated Ecosystems	Locked brand-to-module architecture

• Proprietary Ecosystems: Most manufacturers produce their own string inverter lines that are natively designed to pair with their specific power optimizer models.
• Smart Modules: If you select a smart module, which has the device factory-integrated, you are locked into that specific brand’s inverter ecosystem for the life of the system.
• Communication Protocols: The string inverter must support the specific digital signaling used by the optimizer to relay panel-level monitoring data and fault alerts.
• Fixed Voltage Requirements: The string inverter must be engineered to operate within the specific, non-fluctuating voltage window maintained by the optimizer string.

Before purchasing your hardware, verify the specific inverter model number against the manufacturer’s compatibility list to ensure the DC-to-DC communication protocol matches your chosen optimizer series.

To ensure optimal system functionality, installers should verify the following compatibility markers during the procurement process:

• Verify the manufacturer’s specific firmware version supports the chosen optimizer model to ensure stable voltage regulation.
• Confirm that the inverter’s safety certification explicitly lists the optimizer series as an approved rapid shutdown initiating device.
• Check that the communication cable wiring topology matches the inverter’s proprietary bus architecture requirements.
• Validate the maximum string length constraints provided by the manufacturer to prevent thermal stress on the DC-to-DC converters.

Power Optimizer vs Microinverter vs String Inverter: Which Is Better for Your System?

Choosing between a power optimizer, a microinverter, and a string inverter depends on how you prioritize modular control, equipment longevity, and upfront investment costs.

Feature	Power Optimizer	Microinverter	String Inverter
Conversion Location	Central Inverter	Each Solar Panel	Central Inverter
MPPT Level	Panel-level	Panel-level	String-level
Safety Feature	Rapid shutdown (1 VDC)	Built-in AC safety	External equipment needed
Warranty	25 years	25 years	10-12 years
Complexity	Moderate	High component count	Lowest complexity

The power optimizer serves as a middle-ground solution, providing panel-level monitoring and independent maximum power point tracking (MPPT) similar to a microinverter, but it offloads the DC-to-AC conversion to a single string inverter. According to the U.S. Department of Energy, string inverters are generally the most cost-effective option for roofs with consistent, unshaded exposure, while power optimizers or microinverters typically offer greater efficiency for systems dealing with complex roof geometry or frequent shading. While a string inverter is the most economical and simplest to maintain due to fewer roof-mounted components, it lacks the individual panel management required for complex roof layouts. Conversely, microinverters eliminate the need for a central inverter entirely but place sensitive electronics under every solar panel. Because the power optimizer allows you to keep the conversion hardware at ground level while still mitigating shading loss and enabling rapid shutdown, it is often favored for residential roofs where aesthetics and serviceability are balanced.

Compare the anticipated maintenance accessibility of your specific roof pitch against the number of electronic components you are comfortable placing in direct sunlight.

Consider these practical factors when finalizing your decision:

• Evaluate the long-term accessibility of your roof, as systems with roof-mounted components like microinverters require labor-intensive maintenance.
• Assess your future energy needs, as microinverters provide the easiest pathway for modular system expansion.
• Check local electrical codes, as certain jurisdictions may mandate specific rapid shutdown capabilities that influence your hardware selection.
• Review the monitoring software interface provided by each manufacturer to ensure the data granularity matches your technical preferences.
