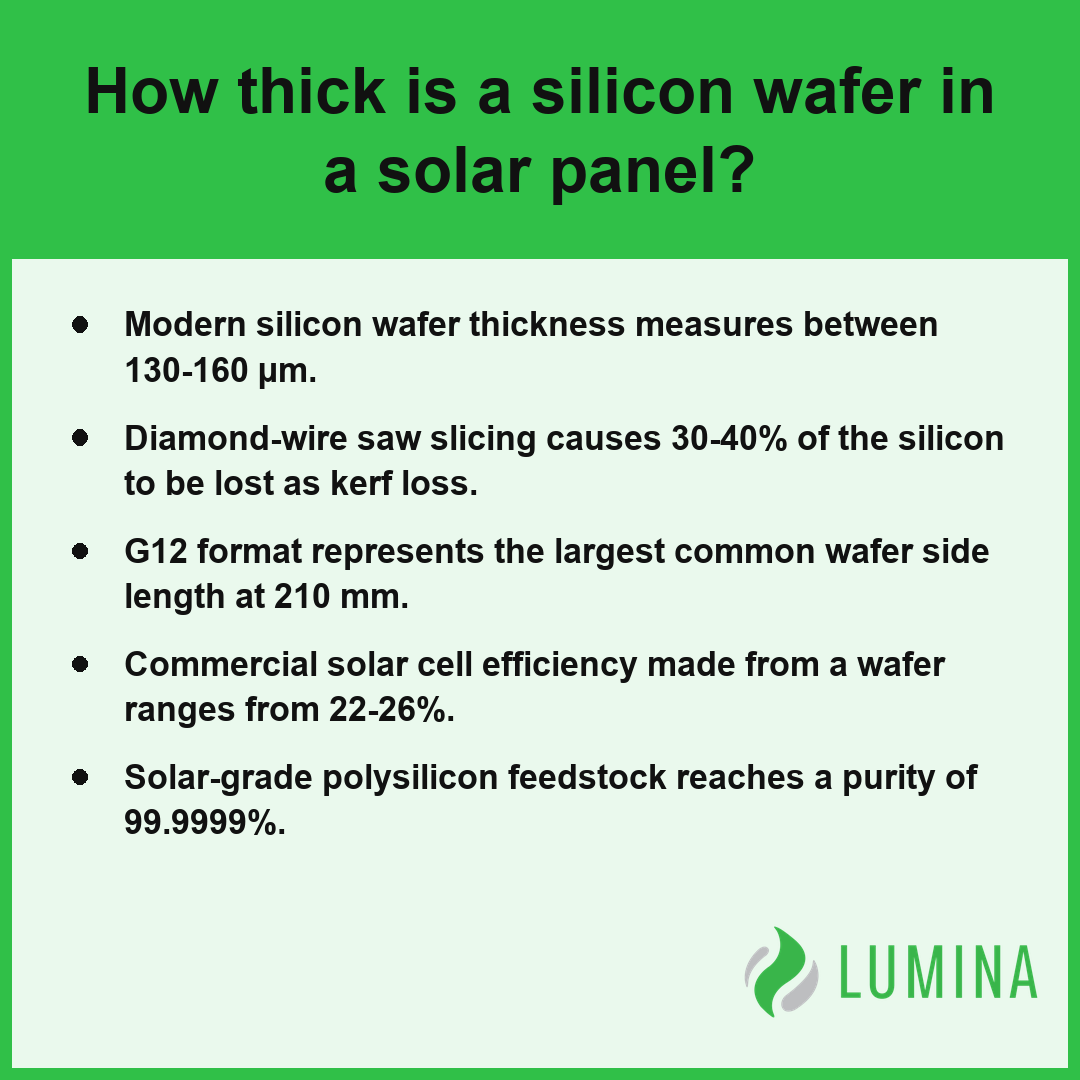

How Thick Is a Silicon Wafer in a Solar Panel?

A silicon wafer in a solar panel is a thin slice of material measuring between 130-160 micrometers in thickness. This profile has decreased significantly over the last decade, as manufacturers optimize material usage to reduce production costs and improve the structural flexibility of the solar cell. Because a human hair is approximately 70 micrometers thick, you can visualize the typical silicon wafer as being roughly double that width.

Feature Category	Specification / Metric	Impact on Manufacturing
Wafer Profile	130–160 μm	Increases structural flexibility and lowers cost
Comparison Baseline	70 μm (Human Hair)	Provides scale for thickness visualization
Material Utilization	30–40% Kerf Loss	Represents unavoidable byproduct during sawing
Thermal Requirement	1,420 °C	Energy threshold for initial ingot growth
Structural Risk	High susceptibility	Increased probability of micro-cracking during assembly

The manufacturing process relies on a diamond-wire saw to cut these precise slices from a large ingot. Per the Department of Energy, advances in sawing technology and wire-based cutting methods have enabled the production of thinner silicon wafers to reduce the total amount of polysilicon required per watt of solar power generated. This mechanical process is inherently limited by the physical dimensions of the wire and the stability of the silicon, leading to unavoidable material loss. Consider the following breakdown of the physical characteristics and material considerations of these dimensions:

• Kerf Loss: Approximately 30-40% of the silicon is lost as kerf during the slicing process.
• Ingot Growth: The base material is grown at about 1,420 °C before being sliced into these thin formats.
• Mechanical Integrity: Thinner slices are more prone to micro-cracking during module assembly, requiring careful handling during the interconnection of cells.
• Surface Geometry: Regardless of thickness, the surface is textured into micro-pyramids to increase light trapping.

Evaluate the mechanical durability specifications of a module when selecting panels, as thinner profiles require more robust frame designs to prevent stress-induced fractures in the silicon wafer.

The manufacturing process of thin-film silicon wafers involves several technical challenges and critical procedural requirements:

• Czochralski process: The initial stage where high-purity polysilicon is melted and grown into a monocrystalline cylindrical ingot.
• Diamond wire sawing: A precision cutting method utilizing thin wires impregnated with industrial diamonds to slice the silicon ingots with minimal material displacement.
• Surface texturing: An chemical etching process, usually involving potassium hydroxide, used to create microscopic pyramids that reduce light reflection.
• Passivation layer deposition: The application of dielectric materials to the wafer surface to minimize electron recombination and enhance overall energy conversion efficiency.
• Metallization: The screen-printing of conductive silver or aluminum pastes onto the wafer surface to collect and transport generated electrical current.

Monocrystalline vs. Multicrystalline Wafers: What Sets Them Apart?

Monocrystalline wafers and multicrystalline wafers are distinguished by their internal crystalline structure and the growth methods used to create the silicon base material.

Feature	Monocrystalline Wafer	Multicrystalline Wafer
Growth Method	Czochralski method	Directional solidification casting
Crystal Structure	Single uniform lattice	Multiple fragmented grains
Appearance	Uniform dark or black hue	Visible grain boundaries and blue mosaic
Production Status	Dominant market share	Largely displaced in new production

A monocrystalline wafer is pulled from an ingot grown at about 1,420 °C using a single seed crystal, which ensures a continuous, high-purity atomic structure that facilitates easier electron flow. According to the National Renewable Energy Laboratory, monocrystalline silicon wafers manufactured via the Czochralski process create a single continuous crystal lattice structure that typically yields higher energy conversion efficiencies compared to multicrystalline alternatives. In contrast, a multicrystalline wafer is produced by melting and solidifying raw polysilicon in a square mold, creating boundaries between crystals that can impede electrical movement and result in lower energy conversion. Because the monocrystalline silicon wafer offers fewer obstacles to charge carriers, it has become the standard choice for modern high-efficiency modules, effectively rendering the multicrystalline alternative obsolete in most large-scale deployments.

Compare the visual uniformity of the cells in a module to confirm if you are receiving the higher-efficiency monocrystalline wafer format required for optimal long-term energy yields.

The following technical characteristics further differentiate these silicon wafer types:

• Monocrystalline silicon exhibits higher thermal stability, which helps mitigate performance degradation in high-temperature environments.
• Multicrystalline manufacturing relies on less energy-intensive cooling processes, historically resulting in a lower carbon footprint during the initial ingot production phase.
• The uniform lattice of monocrystalline structures allows for thinner wafer slicing without significant risk of mechanical breakage during cell assembly.
• Grain boundaries in multicrystalline wafers serve as recombination centers, which accelerate the loss of excited charge carriers under sunlight.

Silicon Wafer Sizes Explained: What M10 and G12 Mean

Silicon wafer sizes such as M10 and G12 represent the standardized physical dimensions of the square or pseudo-square bases used to manufacture modern solar cells. The industry has shifted toward these larger formats to increase the surface area of each individual silicon wafer, which directly correlates to higher power output per module. By moving from legacy sizes to these expansive standards, manufacturers optimize production throughput and reduce the proportional impact of assembly costs. Per the International Energy Agency, standardizing wafer sizes like M10 and G12 across the solar supply chain is a recognized strategy to reduce manufacturing costs and simplify the logistics of module assembly within the United States market.

Wafer Format Standard	Side Length (mm)	Approximate Surface Area (mm²)	Primary Engineering Benefit
M10	182	33,124	Optimized balance of mechanical structural integrity and high-output yield
G12	210	44,100	Maximum power density through reduction of inactive interconnect spacing

• M10 Format: Features a side length of 182 mm, balancing mechanical stability with high-volume output.
• G12 Format: Represents the largest common standard with a side length of 210 mm and an area near 44,000 mm², enabling maximum power density.
• Area Scaling: Larger wafers reduce the total number of cells required in a module, minimizing the space consumed by interconnects and gaps.
• Production Efficiency: Transitioning to these larger footprints allows manufacturers to utilize the full diameter of the ingot grown via the Czochralski method more effectively.

When selecting your module configuration, consider how the physical dimensions of the silicon wafer will impact the overall weight and dimensions of the panel array on your mounting surface.

The following factors influence the integration of these larger wafer formats into module manufacturing processes:

• Increased wafer dimensions necessitate upgraded stringer equipment capable of handling higher mechanical stress during the interconnection process.
• Larger surface areas require precise thermal management adjustments in laminators to ensure uniform encapsulation of the cell matrix.
• The transition to M10 and G12 formats often mandates redesigned frame and glass specifications to maintain structural load-bearing requirements.
• Bifacial module efficiency gains are amplified by larger wafers, as they improve the light-to-area capture ratio for ground-mounted installations.

Choosing Between an N-Type Wafer and a P-Type Wafer for Solar Panels

You choose between an n-type wafer and a p-type wafer based on the intended p-n junction architecture and the desired efficiency of your solar cell, as n-type variants generally provide higher efficiency and resistance to light-induced degradation compared to p-type variants.

Wafer Type	Primary Dopant	Majority Carrier	Resistivity Range (ohm-cm)	Degradation Susceptibility
P-type	Boron	Holes	0.4 – 2.0	High (Boron-Oxygen complexes)
N-type	Phosphorus / Gallium	Electrons	0.3 – 7.0	Low (Superior stability)

How Doping Shapes the P-N Junction

Choosing between an n-type wafer and a p-type wafer requires understanding how doping shapes the p-n junction to facilitate electron flow. By introducing specific impurities into the purified silicon wafer, you create two distinct regions that, when joined, form a built-in electric field. This junction acts as a one-way street for electrons freed by incoming light.

Boron and Phosphorus as Dopants

• p-type wafer: Doped with boron to create an excess of “holes” (positive charge carriers).
• n-type wafer: Doped with phosphorus or gallium to create an excess of free electrons (negative charge carriers).
• Wafer resistivity: Ranges from 0.4-2 ohm-cm for p-type and 0.3-7 ohm-cm for n-type.

Why Does an N-Type Wafer Often Perform Better?

An n-type wafer often performs better than its p-type counterpart because it is inherently more resistant to light-induced degradation. Because boron-doped p-type silicon is susceptible to forming complexes with oxygen—which trap charges and reduce performance over time—n-type wafers provide superior long-term stability. This advantage is essential for high-performance cell designs like TOPCon and heterojunction architectures, which rely on cleaner carrier transport to reach efficiency levels as high as 26%.

Where a P-Type Wafer Still Makes Sense

A p-type wafer still makes sense for applications prioritizing lower upfront production costs over maximum lifetime efficiency. According to Sandia National Laboratories, p-type wafers have historically dominated the United States solar market because their simpler boron-doping processes and established production infrastructure lead to lower manufacturing costs. Because the manufacturing infrastructure for p-type PERC cells has been the industry standard for many years, these wafers remain cost-effective and highly available. While they suffer from more significant degradation than n-type versions, they continue to provide a reliable, proven solution for standard solar installations where extreme performance is not the primary requirement.

Compare the anticipated degradation rates of specific cell technologies to determine if the longevity benefits of an n-type wafer justify the difference in total project cost.

The following factors contribute to the superior performance of n-type silicon in high-efficiency solar cell designs:

• Higher tolerance for metallic impurities, which allows for longer minority carrier lifetimes compared to boron-doped substrates.
• Elimination of the Boron-Oxygen defect mechanism, preventing the initial light-induced degradation common in standard p-type modules.
• Increased compatibility with advanced cell architectures like TOPCon and IBC, which require specific base doping profiles to minimize recombination.

How Efficient a Solar Cell Made From a Silicon Wafer Can Get

The efficiency of a solar cell made from a silicon wafer reaches approximately 22-26% in current commercial applications. This conversion capability relies heavily on the crystalline structure and surface treatment of the silicon wafer, which starts as highly purified polysilicon. To maximize the energy captured from light, manufacturers use chemical etching to create micro-pyramids on the surface and apply silicon nitride coatings, which reduce light reflection from over 30% to just a few percent. The ultimate performance of the final module is constrained by physical limits, as the theoretical single-junction efficiency limit for these cells is about 29.4%. Per the National Renewable Energy Laboratory, laboratory efficiency records for monocrystalline silicon cells now exceed 26 percent, bringing them close to this theoretical Shockley-Queisser limit.

Efficiency Metric	Conversion Percentage	Contextual Classification
Commercial Efficiency Range	22% – 26%	Standardized Market Application
Current Laboratory Peak	> 26%	Controlled Research Environment
Shockley-Queisser Theoretical Limit	29.4%	Absolute Physical Constraint
Operational Variable	Optimization Target	Functional Impact
Minority Carrier Lifetime	100s of μs to ms	Enhances charge carrier duration
Doping Concentration	Boron or Phosphorus	Refines p-n junction polarity
Wafer Resistivity	0.3 – 7 ohm-cm	Reduces internal electrical loss

Several technical factors dictate how effectively your solar cell transforms sunlight into usable electricity:

• Minority carrier lifetime: High-quality wafers often feature lifetimes ranging from hundreds of microseconds to milliseconds.
• Doping precision: Precise control over boron or phosphorus concentrations within the silicon wafer optimizes the p-n junction.
• Resistivity levels: Maintaining a balance, typically 0.3-7 ohm-cm for n-type wafers, minimizes electrical resistance losses.
• Surface passivation: Advanced coatings and textured geometries ensure that light is trapped rather than bounced away.

Review the manufacturer’s technical data sheet for the module’s specified conversion efficiency to verify the cell-level performance of the silicon wafer used in your system.

The fabrication process for high-efficiency monocrystalline silicon cells involves several critical refinement stages beyond surface texturing:

• Czochralski process utilization to grow high-purity single-crystal silicon ingots.
• Wafer slicing using diamond wire technology to minimize kerf loss and material damage.
• Phosphorus diffusion to establish a precise p-n junction depth for optimal electron collection.
• Passivated Emitter and Rear Cell (PERC) architecture integration to minimize surface recombination losses.
• Screen-printed silver or aluminum metallization to ensure high-conductivity electrical contact grids.
