Transparency and Translucency: Efficiency Tradeoff, Light Transmittance, Anti-reflective Coating, Reflectance and Absorptance, Soiling and Obstructions, See-through Panels, Textured Glass, Haze, Measurement Method, Encapsulant Clarity

A modern solar canopy illustrates transparency and translucency as sunlight filters through bifacial panels into a courtyard on a page about Transparency and Translucency: Light Transmittance, Efficiency Tradeoff, Reflectance and Absorptance, Anti-reflective Coating, See-through Panels, Soiling and Obstructions, Haze, Textured Glass, Encapsulant Clarity, Measurement Method

Transparency and translucency describe how much light passes through a material, either clearly or in a scattered, diffused way. Key aspects include light transmittance, efficiency tradeoff, reflectance and absorptance, anti-reflective coating, see-through panels, soiling and obstructions, haze, textured glass, encapsulant clarity, and measurement method. In solar panels, these properties decide how much sunlight reaches the cells, how much bounces off the surface, and how much is absorbed and turned into electricity. You can think of every ray of light as having three possible fates: it passes through, it reflects away, or it is absorbed, and the balance among them shapes how a panel performs. Anti-reflective coatings on the glass reduce lost light, while see-through panels let daylight enter a building at the cost of some power output. If you are researching a solar company Washington DC, you will often find these glass and coating choices described in terms of light transmittance and efficiency. The sections below explain transmittance, reflectance and absorptance, how coatings work, how see-through panels are built, and why more transparency usually means less electrical output.

Key Takeaways

  • Low-iron tempered solar glass has 91 to 92 percent transmittance for light.
  • Uncoated glass loses about 8 percent of light through reflectance at both surfaces.
  • Anti-reflective coating adds 2 to 3 percentage points to glass transmittance.
  • High transparency and translucency impact how light distributes in solar modules.
  • Semi-transparent modules offer 10 to 50 percent visible transmittance for building use.

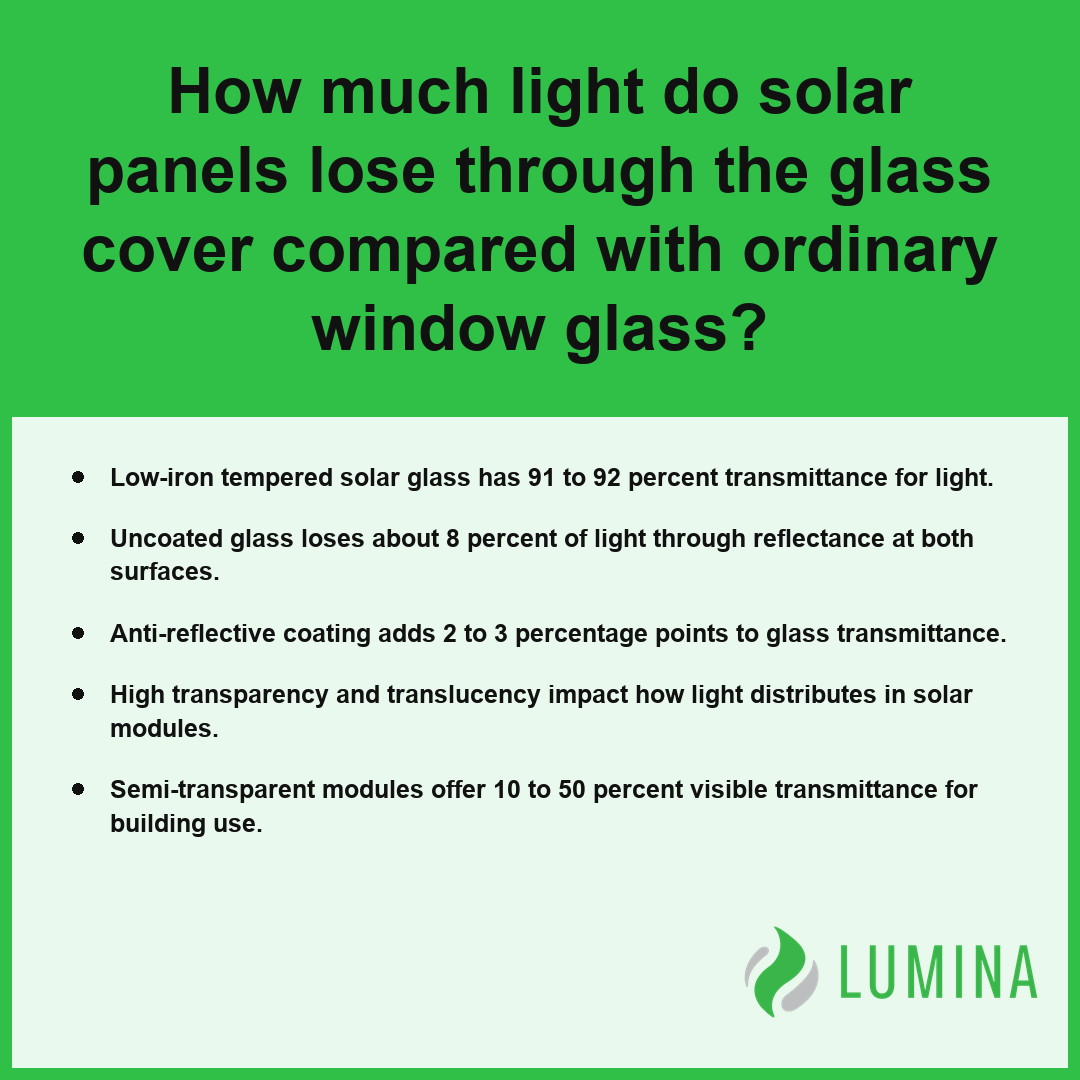

How Much Light Do Solar Panels Lose Through the Glass Cover Compared With Ordinary Window Glass?

Solar panels lose less light through their glass cover than ordinary window glass because low-iron tempered solar glass is specifically engineered to maximize transmittance. While ordinary window glass with its higher iron content transmits between 83 to 90 percent of light and often displays a green tint, low-iron tempered solar glass, typically 3.2 mm thick, achieves a higher transmittance of 91 to 92 percent. According to the National Renewable Energy Laboratory, standard photovoltaic glass relies on this low-iron tempered material to consistently achieve solar transmittance levels exceeding 90 percent, whereas typical architectural window glass often reflects or absorbs more light and results in lower total solar energy transmission. This difference in material composition is essential for solar performance, as it minimizes the light lost through absorption before it ever reaches the energy-generating cells.

Glass SpecificationIron Content ProfileTypical ThicknessSolar TransmittanceHaze Percentage
Low-Iron Tempered Solar GlassMinimized (Optimized)3.2 mm91% – 92%< 2% – 5%
Standard Architectural Glass (High-End)ModerateVariable88% – 90%Negligible
Standard Architectural Glass (Baseline)HighVariable83%Negligible

Solar Transmittance Comparison

Solar Glass
92%
Window Glass (High)
90%
Window Glass (Low)
83%

When you evaluate the physical behavior of these materials, you must consider the balance of transparency and translucency. Uncoated glass reflects about 4 percent of light at each surface, meaning roughly 8 percent is lost across two surfaces before the light enters the interior of the panel. To manage how light interacts with the internal layers, manufacturers choose glass based on these specific optical requirements:

  • Low-iron tempered solar glass: High transparency with under 2 to 5 percent haze; optimized for maximum light passage.
  • Ordinary window glass: Lower transparency due to iron impurities; unsuitable for efficient energy collection.
  • Textured glass: High translucency with haze often exceeding 30 to 90 percent; used to reduce glare and improve light trapping at oblique angles.

Compare the thickness and iron content of any glass cover against the light-harvesting requirements of your specific solar installation site to ensure you are not sacrificing power output for aesthetic purposes.

This comparison explains how transparency and translucency affect light transmission through specialized solar panel glass.

How Light Splits Between Transmittance, Reflectance and Absorptance in a Solar Panel

Light splits between transmittance, reflectance and absorptance in a solar panel according to the physical properties of each layer, where the interaction of transparency and translucency dictates the path of every photon. The total incoming sunlight is divided into three distinct fractions that must sum to 100 percent of the energy striking the surface. First, transmittance is the fraction of light that travels through the glass and encapsulant to reach the solar cells. Second, reflectance is the portion that bounces away from the surface, often triggered by the interface between the air and the glass cover. Finally, absorptance is the fraction of light converted into heat or electrical current within the cell materials or the panel components.

Light Interaction PathwayDefinition and Physical RoleBaseline PercentageImpact on Solar Efficiency
TransmittancePhoton transmission through protective glass and encapsulation layers.90%Directly fuels the energy conversion potential of the cells.
ReflectanceEnergy loss occurring at the air-to-glass interface.8%Represents wasted potential; minimized via anti-reflective coatings.
AbsorptanceConversion of light into heat or electron flow within cell materials.2%Defines the ultimate electrical output of the solar panel unit.

Solar Light Interaction Percentages

Transmittance
90%
Reflectance
8%
  • Transmittance: The percentage of light that successfully passes through the front glass and encapsulant, typically exceeding 90 percent in high-quality materials.
  • Reflectance: The light lost at the surface, which reaches about 8 percent across two surfaces of uncoated glass before any mitigation.
  • Absorptance: The capture of photons by the active cells or the heating of panel materials, defining the ultimate potential for electricity generation.

Because these three pathways are interdependent, minimizing reflectance is the most direct way to boost transmittance and, consequently, power production. Per the Department of Energy, anti-reflective coatings are frequently applied to solar cell surfaces to reduce reflected light, which helps maximize the amount of energy available for absorption and the creation of electron-hole pairs. Managing the balance of these properties is vital for performance, as even internal yellowing of the encapsulant over time shifts more energy from transmittance to unwanted absorptance. Inspect the condition of your panel surfaces periodically to ensure that surface debris or weathering is not shifting your light balance toward excessive reflectance or heat-generating absorptance.

Factors influencing these interaction ratios include:
  • Surface texturing techniques, such as etching or pyramid structures, which trap light through multiple reflections.
  • The refractive index differential between the atmospheric air and the panel’s top cover glass.
  • Internal scattering effects caused by impurities or bubbles within the encapsulant material.
  • Angle of incidence, which alters the path length of light through the various optical media.

Does an Anti-Reflective Coating Increase Transparency and Power Output, and Does It Wear Off?

An anti-reflective coating increases your module’s power output by reducing reflectance to boost transmittance by 2 to 3 percentage points, but this layer can gradually wear off over time due to environmental abrasion.

Optical MetricStandard Uncoated GlassWith Porous Silica CoatingNet Performance Impact
Reflectance (per surface)4%~1%3% Reduction in Loss
Total Light Loss (two surfaces)8%~5%3% Recovery Gain
Transmittance EfficiencyBaseline+2 to +3 Percentage PointsIncreased Power Output
Optimal Coating ThicknessN/A100–130 nmOptimized Light Trapping

Light Loss and Recovery (Percentages)

Reflection per surface
4%
Total loss (two surfaces)
8%
Transmittance boost
3%

What a Porous Silica Coating Does to Transmittance and Reflectance

Yes, an anti-reflective coating increases transparency and power output, and while it does not wear off instantly, its efficacy can diminish over time. By applying a porous silica coating roughly 100 to 130 nm thick to the surface of low-iron tempered solar glass, you can significantly reduce the amount of light that bounces off the panel. Since uncoated glass reflects about 4 percent of light at each surface, these coatings recover a substantial portion of the 8 percent total loss, boosting transmittance by 2 to 3 percentage points.

Does the Coating Wear Off Over Time?

The durability of the coating depends on environmental exposure and physical cleaning habits. Per the American Society for Testing and Materials, standardized durability testing protocols for solar modules evaluate the mechanical and chemical resilience of surface coatings to ensure they maintain optical performance under field exposure conditions. While the material is engineered to be robust, the following factors generally contribute to its gradual degradation:

  • Mechanical abrasion from abrasive brushes or cleaning cloths.
  • Accumulation of chemical deposits that mask the porous structure.
  • Erosion caused by windblown particulates like sand or dust.
  • Long-term exposure to extreme humidity or acidic conditions.

Signs of Coating Wear on Textured Glass

Because textured glass relies on surface patterns to manage light, monitoring its integrity is vital for maintaining transparency and translucency. You might notice the coating has worn away if the glass begins to exhibit more intense glare or if the module appears less uniform under direct sunlight. A loss in efficiency often mirrors the visual change in how the surface interacts with ambient light, signaling that the optical optimization is no longer performing at its factory specifications.

How Coatings Affect Haze and Power Output

Applying these coatings alters the surface dynamics without necessarily increasing haze, keeping it well within the transparent range of under 2 to 5 percent. Because the coating directly correlates to increased light capture, the 2 to 3 percentage point gain in transmittance translates into a nearly proportional increase in the power output of your solar array. Inspect your panels annually for surface scratching to ensure that your maintenance routine is not stripping away the performance-enhancing layer prematurely.

Environmental factors that contribute to the gradual degradation of anti-reflective coatings include:
  • Physical erosion caused by wind-blown sand, dust, and abrasive particulates.
  • Chemical weathering resulting from long-term exposure to moisture, humidity, and atmospheric pollutants.
  • Thermal cycling stress that can induce micro-cracks or delamination within the porous silica layer.
  • Surface contamination from organic debris and mineral buildup that compromises optical clarity over time.

Can Solar Panels Be See-Through, and Where Are Semi-Transparent Modules Used?

Yes, solar panels can be see-through, and they utilize specific levels of transparency and translucency to integrate into building designs. You can find these semi-transparent modules in applications where both power generation and light management are required, allowing for a visible transmittance of about 10 to 50 percent. According to the United States Department of Energy, building-integrated photovoltaics like solar glass are being used more frequently in skylights and window glazing to generate onsite electricity while acting as a replacement for standard construction materials. Unlike opaque residential panels that target maximum conversion efficiency, these units are engineered for environments where aesthetics or interior illumination take precedence over peak electrical yield.

Application TypePrimary FunctionLight Management RoleSolar Integration Strategy
Skylights and CanopiesOverhead RoofingControlled shadingDirect solar harvest
GreenhousesControlled EnvironmentPhotosynthetic light filtrationOptimized energy-to-growth ratio
Building FacadesEnvelope CladdingDaylight modulationVertical surface conversion
AtriumsThermal RegulationHeat gain reductionDensity-adjusted cell spacing

Visible Transmittance Range

Minimum Transmittance
10%
Maximum Transmittance
50%
  • Skylights and Canopies: These modules act as overhead roofing, utilizing controlled transparency and translucency to shade interior spaces while generating power.
  • Greenhouses: Selective light penetration allows for plant growth while the panel captures energy, balancing the need for photosynthetically active radiation with electrical production.
  • Building Facades: Vertical integration allows exterior walls to double as power-generating surfaces without creating a fully opaque building envelope.
  • Atriums: Designers use these modules to manage heat gain and daylighting, maintaining a comfortable environment by adjusting the density of the solar cells.

Before selecting a module for your project, calculate the required light levels for your interior space to ensure the chosen degree of transparency does not negatively impact the usability of the room.

To further enhance the performance and aesthetic integration of see-through solar technology, consider these specialized implementation factors:
  • Apply anti-reflective coatings to outer glass layers to minimize glare and boost light absorption efficiency.
  • Utilize thin-film technology, such as amorphous silicon or perovskite, to maintain clearer visual transparency compared to crystalline silicon cells.
  • Integrate smart glass controllers to dynamically adjust opacity based on real-time sunlight intensity and internal cooling needs.
  • Ensure proper edge sealing and moisture-resistant encapsulation to protect internal circuitry from weather-induced degradation in exterior glazing.

Efficiency Tradeoff in Transparency and Translucency, and Whether a Fully Transparent Solar Cell Could Work

The efficiency tradeoff in transparency and translucency exists because as you increase the amount of light passing through a device, you inevitably decrease the amount of light available for the solar cells to convert into electricity. Achieving high transparency and translucency requires either spacing out the internal silicon cells or utilizing specialized thin-film materials that inherently capture less energy than opaque crystalline silicon. While research continues into fully transparent solar cells based on organic molecules, these remain experimental; Massachusetts Institute of Technology reports that selective-wavelength transparent solar cells can reach reasonable efficiency by capturing ultraviolet and near-infrared light while leaving the visible spectrum clear. Currently, these high-transparency materials cannot match the electrical yields of standard modules.

Solar Conversion Efficiency by Technology

Opaque Panel (Max)
24%
Semi-transparent (Max)
12%
Technology TypeVisible TransmittanceConversion Efficiency
Opaque Residential Panel0%20% to 24%
Semi-transparent Module10% to 50%5% to 12%

You must balance your aesthetic or structural goals against the reduced energy density of your installation, as a fully transparent solar cell that maintains high electricity production remains a theoretical challenge for current manufacturing. Compare the specific power-per-square-meter rating of a semi-transparent module against the electricity needs of your application to ensure the energy yield justifies the loss of cell surface area.

Consider these key factors when evaluating the feasibility of installing transparent or semi-transparent solar technology for your project:
  • Assess the available surface area, as lower efficiency modules require a larger footprint to match the total energy output of traditional opaque systems.
  • Verify structural load-bearing requirements, as thin-film materials used in translucent modules may require different mounting hardware compared to heavy crystalline glass panels.
  • Analyze local irradiance patterns to ensure the specific light-harvesting spectrum of your chosen technology aligns with your geographic solar conditions.
  • Evaluate the long-term degradation rates of organic-based or thin-film transparent cells, which may differ significantly from the industry-standard 25-year lifespan of silicon panels.

Frequently Asked Questions

What is haze in solar glass and how does it separate transparent from translucent materials?

Haze is the measure of light scattering, defined as the percentage of transmitted light deviating more than 2.5 degrees from the original path. Transparent materials exhibit haze under about 2 to 5 percent, while translucent textured or frosted glass exhibits higher haze, often exceeding 30 to 90 percent.

Why is some solar panel glass textured and slightly translucent instead of perfectly clear?

Solar glass is sometimes textured and slightly translucent to reduce surface glare and trap more light at oblique angles, which improves energy yield on cloudy days. While this surface treatment increases haze compared to standard glass, it helps capture sunlight that would otherwise reflect away from the solar cells.

Can the clear encapsulant layer inside a solar panel yellow and reduce light transmission over the years?

Yes, the encapsulant layer can yellow over time, which reduces its light transmission below the standard requirement of 90 percent. Because this layer is typically 0.4 to 0.5 mm thick, any degradation or discoloration directly impacts the total light reaching the solar cells, potentially lowering overall power output.

How much do dirt, snow and translucent obstructions like thin tree canopy or plastic sheets cut solar panel output?

Obstructions that cause translucency or opacity reduce output by blocking or scattering light before it reaches the cells. While specific losses vary by site, any material covering the surface limits the light available for conversion, contrasting with low-iron tempered solar glass, which maintains transmittance of 91 to 92 percent.

How is solar glass transmittance measured, and why can tinted glass look clear yet block infrared light that silicon cells use?

Solar glass transmittance is measured as one of three optical fractions—transmittance, reflectance, and absorptance—that sum to 100 percent. Tinted glass may appear to have high transparency and translucency while still absorbing specific wavelengths, whereas low-iron tempered solar glass is engineered to maximize transmission of the infrared light cells require.
