How Big Is a Typical Photovoltaic Power Station, and What Size Counts as Utility-Scale?

A typical photovoltaic power station ranges from 5 MW to 500 MW in capacity, and a project is generally considered utility-scale when it reaches a minimum size of 1 MW-AC. Per the US Energy Information Administration, utility-scale photovoltaic power stations are generally defined as ground-mounted installations with a capacity of at least one megawatt of alternating current. While the smallest utility-scale installations begin at the 1 MW-AC threshold, the industry consistently pushes toward larger footprints to maximize efficiency, with the largest projects now exceeding 1,000 MW-AC when integrated with energy storage systems.

Project Classification	Capacity Range (MW-AC)	Infrastructure Impact Considerations
Small-scale Utility	1 – 5	Minimal footprint; standard distribution-level interconnection.
Mid-size Utility	5 – 100	Requires dedicated onsite substation; localized grid impact.
Large-scale Utility	100 – 500	High-voltage transmission line upgrades; regional grid integration.
Extra-large / Gigawatt-scale	Above 500	Complex interconnection studies; co-location with BESS; massive land-use planning.

When you evaluate the scale of these developments, keep in mind that the total capacity directly influences your infrastructure requirements, such as the size of the project substation and the voltage rating of the interconnection line. The industry categorizes project sizes based on their net output and capacity to serve the broader electrical grid:

• Small-scale utility: 1 MW-AC to 5 MW-AC
• Mid-size utility: 5 MW-AC to 100 MW-AC
• Large-scale utility: 100 MW-AC to 500 MW-AC
• Extra-large/Gigawatt-scale: Over 500 MW-AC

Because photovoltaic power stations are designed for a 30 to 40 year plant life, the initial selection of your project size should account for potential future expansion or the integration of battery storage components. Before selecting a site, verify the available transmission capacity in your target area to ensure the local grid can support your planned MW-AC output.

Beyond physical capacity, consider these secondary factors that influence the complexity and feasibility of utility-scale solar developments:

• Site Topology: Terrain slope and soil composition dictate mounting system design and ground preparation costs.
• Interconnection Queue: The timeline for grid impact studies and approval processes with regional transmission organizations.
• Regulatory Permitting: Local zoning, environmental impact assessments, and public land-use hearings.
• PPA Duration: Power Purchase Agreements often determine project bankability and long-term financial structure.
• Energy Curtailment Risk: Historical grid congestion data which may lead to intentional reduction of output during peak generation.

How Much Does It Cost to Build a Photovoltaic Power Station?

You can expect the total installed cost of a utility-scale photovoltaic power station to range from $1.00 to $1.60 per W-AC, a figure which encompasses expenses for solar panels, the PV module array, inverters, a single-axis tracker or fixed-tilt racking system, the project substation, and the interconnection line.

Cost Component	Capital Expenditure Range (per W-AC)	Primary Expense Drivers
Site Prep & Civil Works	$0.15 – $0.30	Land clearing, grading, access roads, and drainage
Electrical BoS	$0.20 – $0.40	Wiring, switchgear, transformers, and interconnection
Labor & Installation	$0.25 – $0.45	Mechanical assembly, site management, and specialized crews
Project Soft Costs	$0.10 – $0.20	Permitting, legal fees, engineering, and design

What Drives Installed Cost per W-AC

The installed cost of building photovoltaic power stations generally ranges from $1.00 to $1.60 per W-AC, a figure driven by the combined investment in hardware, labor, and electrical infrastructure. According to the National Renewable Energy Laboratory, utility-scale solar photovoltaic power plant costs are primarily driven by hardware components such as modules and inverters alongside balance-of-system costs including labor, land acquisition, and interconnection infrastructure. Beyond the procurement of PV modules and inverters, you must account for the following capital expenditures that influence your total budget:

• Site preparation and civil works: $0.15 to $0.30 per W-AC
• Electrical balance of system components: $0.20 to $0.40 per W-AC
• Labor, mechanical installation, and site management: $0.25 to $0.45 per W-AC
• Project soft costs including permitting and design: $0.10 to $0.20 per W-AC

How Does Mounting Choice Change Total Project Cost?

Your choice of mounting system directly dictates both initial capital outlays and subsequent energy production gains. While fixed-tilt racking represents the lowest upfront investment, single-axis trackers are standard in modern projects due to their ability to increase total energy output by about 15% to 25%. Although trackers require additional motor components and sensors, their impact on the overall levelized cost of energy is typically favorable because they optimize sunlight capture across the 30 to 40 year plant design life.

Interconnection Line and Project Substation Costs

The interconnection line and project substation costs depend heavily on the distance to the grid and the required voltage step-up capacity. You must factor in these site-specific requirements early, as the cost to transition power from the medium-voltage collection system—typically 34.5 kV—to the high-voltage transmission grid—ranging from 69 to 345 kV—can fluctuate significantly based on local utility requirements and site topography.

Levelized Cost of Energy Over the Plant Design Life

The levelized cost of energy for utility-scale photovoltaic power stations typically falls between $30 and $60 per MWh. When modeling this over the 30 to 40 year plant design life, you must adjust for an annual degradation of modules, which typically ranges from 0.4% to 0.7% per year.

Compare the anticipated DC-to-AC ratio of your site design against local solar irradiance profiles to determine if the increased energy capture justifies the higher equipment expenditure of tracker systems.

Additional factors that influence the final capital expenditure of a solar project include:

• Site-specific geotechnical conditions that may necessitate specialized foundation piling or deeper trenching.
• Geographic proximity to the existing electrical grid, which determines the length and complexity of interconnection lines.
• Local regulatory requirements, such as environmental mitigation mandates or specific community benefit agreements.
• The volatility of global supply chains affecting the procurement lead times and pricing of Tier 1 components.

Fixed-Tilt Racking or Single-Axis Trackers for Your Photovoltaic Power Station

Fixed-tilt racking and single-axis trackers represent the two primary structural methods for mounting solar panels within photovoltaic power stations, and your choice between them hinges on balancing upfront capital requirements against long-term energy generation goals. While fixed-tilt racking provides a stable, lower-cost foundation by holding modules at a set angle, single-axis trackers actively adjust the orientation of your array to follow the sun’s path throughout the day. This dynamic movement significantly enhances the performance of your photovoltaic power stations by keeping the modules perpendicular to incoming light for longer durations.

Performance Metric	Fixed-Tilt Racking	Single-Axis Tracker
Energy Yield Baseline	Reference (0%)	+15% to +25%
Structural Complexity	Static/Passive	Dynamic/Mechanical
Spatial Footprint	High density (minimal spacing)	Low density (requires rotation buffer)
Maintenance Requirements	Minimal (structural integrity only)	Periodic (motors, sensors, gearboxes)
Ideal Application	Cost-sensitive or space-constrained sites	Utility-scale maximizing energy production

• Energy Yield: Single-axis trackers increase total energy output by about 15% to 25% compared to fixed-tilt racking systems. Per Lawrence Berkeley National Laboratory, this increased energy yield is generally sufficient to offset the higher upfront costs of mechanical tracking hardware in utility-scale solar installations across most regions of the United States.
• Ground Coverage: Fixed-tilt configurations require less inter-row spacing, whereas single-axis trackers need additional room to rotate without modules shading one another.
• Maintenance Complexity: Tracking systems include mechanical components such as motors and sensors that require periodic inspection, unlike the static nature of fixed-tilt structures.
• Ground Reflectivity: Bifacial modules, which capture light on both sides, pair effectively with trackers to maximize the boost provided by ground-reflected sunlight.

Assess your site’s available acreage and local solar irradiance profiles to determine if the additional energy yield from tracking justifies the increased mechanical maintenance schedule.

Consider these additional project-specific factors when deciding between racking and tracking systems:

• Topography Constraints: Fixed-tilt systems perform better on undulating or sloped terrain, whereas trackers generally require extensive site grading to ensure mechanical alignment.
• Weather Resilience: Fixed-tilt installations offer superior resistance to high-wind events, while trackers must incorporate “stow” modes to protect components during severe storms.
• Albedo Utilization: Single-axis trackers are more effectively paired with bifacial modules, as their movement minimizes self-shading and enhances light capture on the rear side of the panel.
• Project Lifespan: Fixed-tilt infrastructure faces lower mechanical wear, making it a lower-risk choice for projects with shorter operational life cycles.

How Many Homes Can a 100 MW Photovoltaic Power Station Power?

A 100 MW photovoltaic power station can power approximately 20,000 homes, assuming an average consumption of 10,800 kWh per home and a plant capacity factor of 25%. Per the US Energy Information Administration, such a facility typically generates enough electricity to power between 16,000 and 20,000 average American homes, depending on regional solar irradiance and local consumption patterns. Because the output of photovoltaic power stations fluctuates based on local weather, geographic latitude, and hardware choices, this estimate serves as a baseline for total annual production of 219,000 MWh.

Performance Variable	Technical Metric / Range	Impact on Annual Output
Capacity Factor	22% – 30%	Determines effective nameplate utilization
DC-to-AC Ratio	1.2 – 1.4	Optimizes yield by clipping peak irradiance
Module Degradation	0.4% – 0.7% (Annual)	Reduces long-term yield over 30-40 year lifespan
Bifacial Gain	5% – 10%	Additional generation from rear-side light capture
Baseline Annual Yield	219,000 MWh	Target output for 100 MW nominal capacity

To calculate the effective reach of such a project, you must account for the following variables that influence how much electricity actually reaches the residential grid:

• Capacity factor: The 22% to 30% AC range dictates the effective utilization of the 100 MW nameplate capacity.
• DC-to-AC ratio: A ratio of 1.2 to 1.4 allows for higher total energy production by slightly clipping peak output during the brightest hours.
• Module degradation: A typical annual efficiency loss of 0.4% to 0.7% per year reduces the total energy yield over the 30 to 40 year design life of the equipment.
• Bifacial gains: The use of modules that capture light on the rear side can add 5% to 10% more energy depending on the reflectivity of the ground surface.

Assess the average household energy consumption rates in your specific target region to adjust these projections for local usage patterns.

Beyond internal performance variables, consider these external site-specific factors that influence the total energy delivery to the grid:

• Transmission curtailment limits imposed by local utility providers during periods of low grid demand.
• Soiling losses caused by dust, pollen, or snow accumulation on the module surface.
• Inverter efficiency profiles and balance-of-system electrical losses between the panels and the point of interconnection.
• Inter-row shading and site topography that may prevent optimal tracking angles.

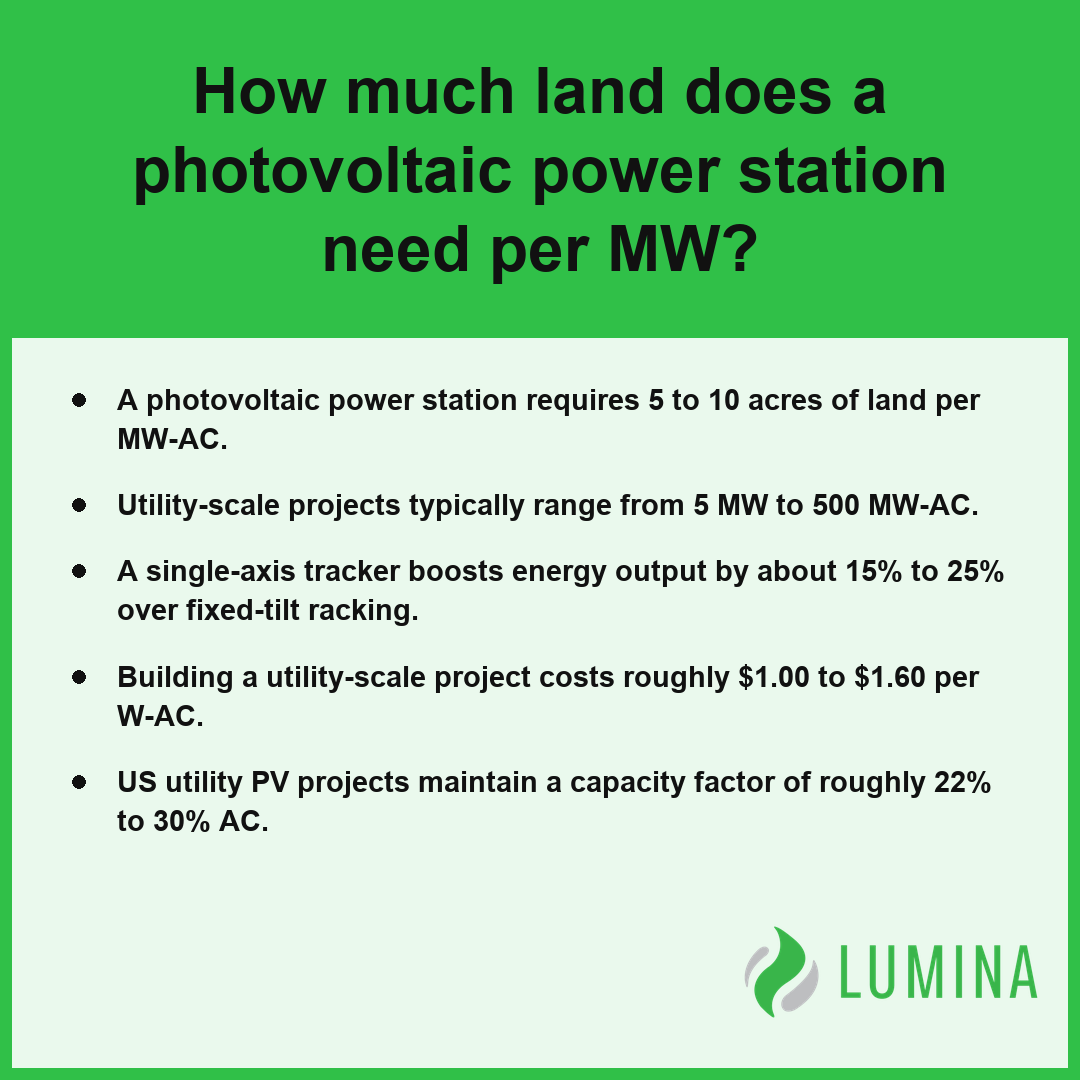

How Much Land a Photovoltaic Power Station Needs per MW

A photovoltaic power station requires 5 to 10 acres of land per MW-AC to accommodate the physical footprint of solar panels, inverters, and necessary site infrastructure. While the exact land intensity depends on the mounting technology and the density of the array design, this range accounts for the space required for both the active power-generating components and the essential set-back buffers mandated by local zoning requirements. Per the U.S. Department of Energy, total project site requirements—including all spacing between arrays and infrastructure buffers—can more broadly approximate 30 to 45 acres per megawatt.

Land Allocation Category	Acreage Density (Per MW-AC)	Primary Composition
Core Physical Footprint	5–10 Acres	PV modules, racking systems, inverters, and electrical components.
Ancillary Site Infrastructure	10–15 Acres	Internal access roads, maintenance pathways, and project substation.
Environmental & Safety Buffers	15–20 Acres	Stormwater management, perimeter security, and habitat mitigation.
Total Project Requirement	30–45 Acres	Comprehensive site development estimate.

When you evaluate the land footprint for your site, consider the following technical factors that influence total acreage needs:

• Mounting system selection: Single-axis trackers generally require more spacing between rows to avoid self-shading compared to fixed-tilt racking.
• Ground cover ratio: The ratio of active PV module surface area to the total ground area occupied directly impacts efficiency.
• Access and safety infrastructure: Sufficient space must be reserved for internal site roads, the project substation, and electrical maintenance pathways.
• Environmental buffers: You must designate non-productive land for stormwater management, site perimeter security, and habitat protection zones.

Review the local geotechnical and topographical constraints of your candidate parcel to determine if site-specific slope limitations will force a lower density layout, thereby increasing your required acreage beyond the standard range.

Several site-specific variables significantly impact the final land-use efficiency of a utility-scale solar development:

• Topographic variance: Slopes exceeding 10–15% often require increased row spacing to prevent inter-row shading and may necessitate additional grading, expanding the overall project footprint.
• Inter-row spacing requirements: Projects utilizing fixed-tilt racking may require wider gaps between rows to accommodate maintenance equipment compared to dense, high-efficiency tracker configurations.
• Geotechnical constraints: Soil stability and flood plain designations can necessitate larger drainage basins or elevated racking systems, increasing land requirements for site remediation.
• Interconnection distance: Long distances between the solar array and the point of interconnection may require additional easements for transmission lines, effectively increasing the site’s total land footprint.
